HEAT PIPE/AC
ONLINE CATALOGUE › HOSES › Flexible pipes for ventilation or cold air intakes
Download sheet in pdf format

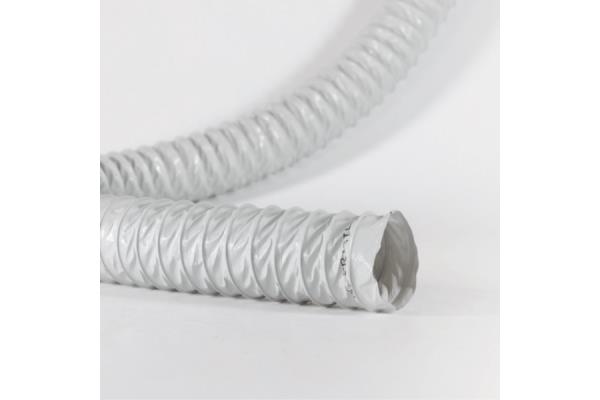

Lightweight flexible duct made of polyester fabric coated with additive polyolefin resins and a harmonic steel wire spiral.
CHARACTERISTICS
- COLOR : Grey
- SIZES : from 10m standard
- PRODUCTION DIAMETERS : from 80 to 610mm
- REACTION TO FIRE : Class 1 (DM 26/06/84)
- OPERATING TEMPERATURES : -20°C +90°C (+110°C peaks)
- BENDING RADIUS : 0.6 x ø
- AIR SPEED : max 32 m/sec
- PRESSURE : max 250mm approx.
It contributes to obtaining credits from the major international building sustainability rating systems:
- LEED: MR
- WELL: MATERIALS
APPLICATIONS: Light extraction of fumes, gases and vapours. Civil and naval ventilation and aeration.
| AIR SPEED - 8 m/s | AIR SPEED - 8 m/s | |||
| DIAMETERS | RANGE | LOSS FROM LOAD | RANGE | LOSS FROM LOAD |
| 80 | 152 | 19 | 190 | 31 |
| 102 | 250 | 15 | 333 | 24 |
| 127 | 383 | 12 | 368 | 18 |
| 160 | 575 | 8 | 773 | 14 |
| 203 | 900 | 7 | 1151 | 11 |
| 254 | 1445 | 5 | 1843 | 8 |
| 318 | 2278 | 4 | 3105 | 6 |
| 356 | 3058 | 3 | 3850 | 5 |
| 406 | 3845 | 3 | 4590 | 4 |
| 508 | 5111 | 2 | 8223 | 3 |
