Flexible pipes for ventilation or cold air extraction

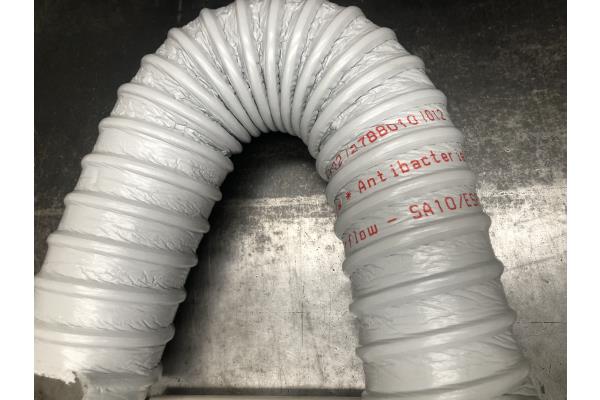

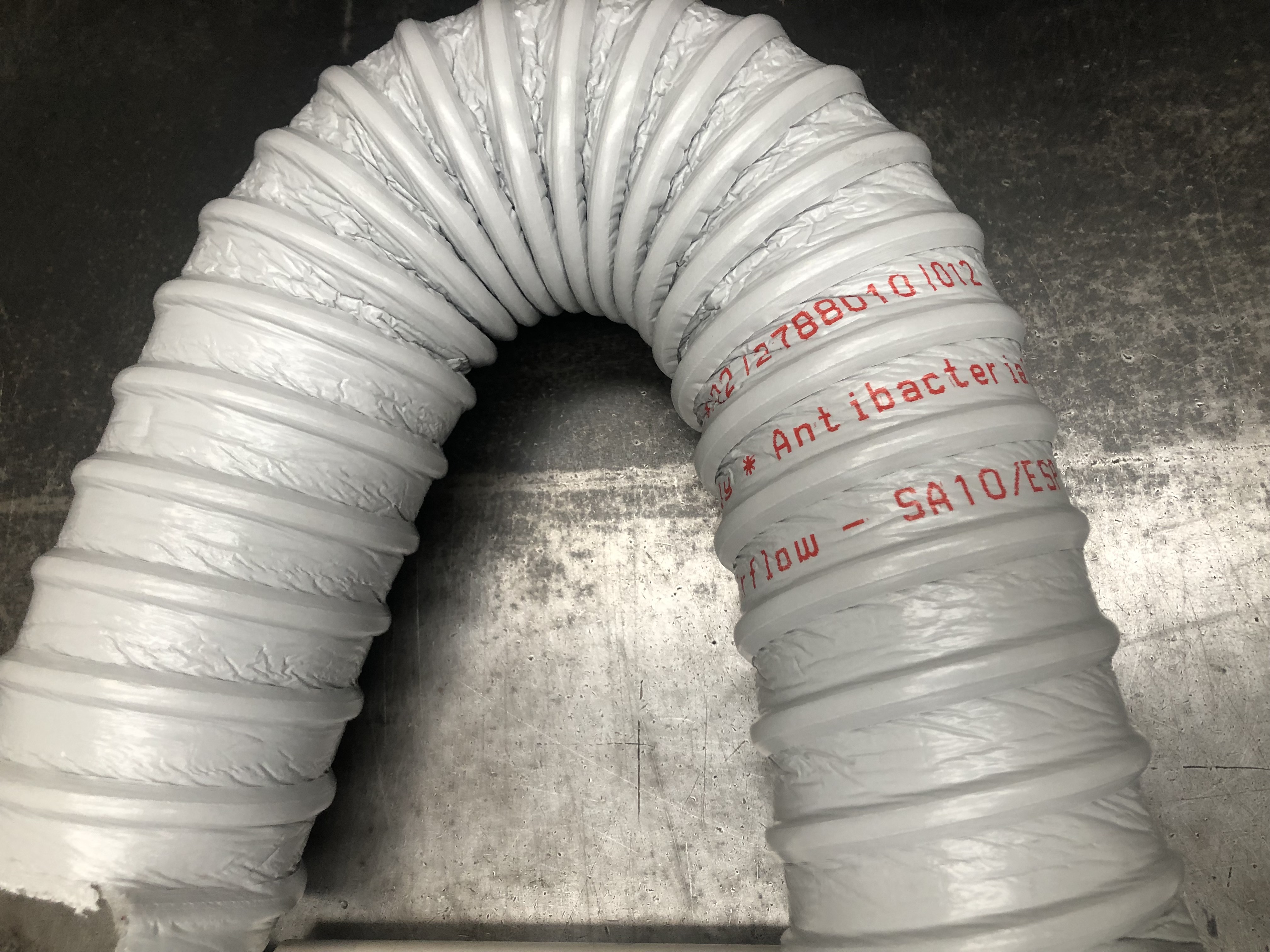

SA10/ESP ANTIBACTERIAL HOSE
Description and technical data
SA10/ESP hose Patented MasterSan
Produced according to a new exclusive technology which creates tubes using a film of polyolefin resin with additives for bacterial protection integrated with the flame protection for the passage of breathable air.
Thermal insulating covering in cross-linked and expanded polyethylene with closed cells. External protection: film of polyolefin resins with additives. Built-in harmonic steel spiral.
The assembly does not involve the use of chemical solvents, adhesives or glues.
Thermal Resistance at 20°CR=0.12m 2 K/W (UNI EN 12664:2002)
Color: Grey
Standard 10 meter sizes
maximum operating temperature: -20° +90° C (peaks +115°C)
Production diameters: from Ø 40 to Ø 254mm
Maximum air speed: 20 m/sec
Maximum Pressure: 200 mH 2 O
Bending radius: 1.2 - 1.8 times the nominal internal diameter of the pipe
ANTIMICROBIAL PROTECTION
MasterSan™ is produced with new generation POLYOLEFIN films with SANITIZED ® antimicrobial and aniviral technology which protects the internal surface from damage due to microbial load and reduces the formation of potential microbial odors within the ventilation system for better IAQ
REACTION TO FIRE:
IT Class 1 (DM 26/06/84) - Approval no. RE1205C20D100011
EU Class B-s2, d0 (EN 13501-1:2009)
spiral option: AM in non-magnetic wire
additives option: UV anti Ultra Violet rays
service option: MP custom marking
| DIAMETERS | PRESSURE
OF EXERCISE
Cafe | DEPRESSION
OF EXERCISE
Cafe | RADIUS OF
CURVATURE
mm | WEIGHT
gr/m |
| 51 | 0.7 | 0.18 | 35 | 96 |
| 63 | 0.7 | 0.15 | 42 | 115 |
| 70 | 0.6 | 0.13 | 49 | 128 |
| 80 | 0.5 | 0.09 | 56 | 154 |
| 102 | 0.4 | 0.08 | 70 | 200 |
| 127 | 0.4 | 0.07 | ninety two | 254 |
| 152 | 0.2 | 0.05 | 105 | 308 |
| 160 | 0.15 | 0.05 | 110 | 331 |
| 180 | 0.15 | 0.05 | 130 | 438 |
| 203 | 0.15 | 0.04 | 140 | 492 |
| 254 | 0.08 | 0.03 | 175 | 600 |
