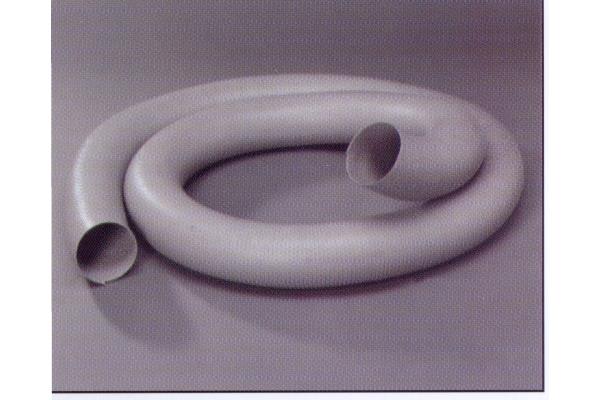

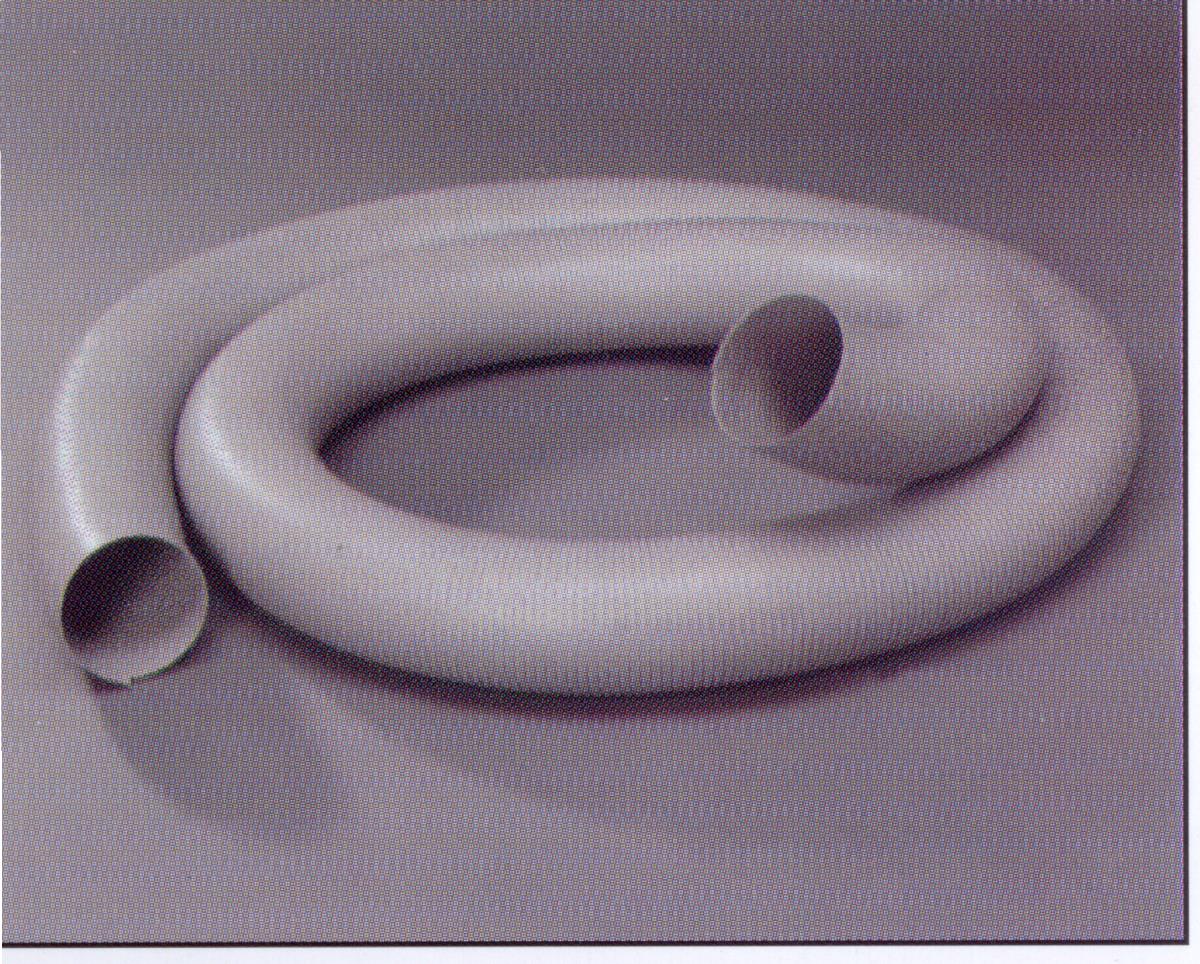

SPIRALFLEX HOSE
ONLINE CATALOGUE › HOSES › Flexible pipes for ventilation or cold air intakes
Download sheet in pdf format
Flexible hose made with a sturdy PVC profile with adjustable coils, its particular structure allows the hose to assume the desired curves and positions.
By rotating the coils, the diameter can be varied by up to 35% more or less than the nominal diameter. The coil structure allows for stretching or compression of 15% to 45%, depending on the cross-section.
Operating temperature: -10° +80°C
Packaging: 5-meter rolls in cardboard boxes
Color: light gray.
Use: extraction of fumes, shavings, sawdust, dust, pneumatic transport, as cable glands.
By rotating the coils, the diameter can be varied by up to 35% more or less than the nominal diameter. The coil structure allows for stretching or compression of 15% to 45%, depending on the cross-section.
Operating temperature: -10° +80°C
Packaging: 5-meter rolls in cardboard boxes
Color: light gray.
Use: extraction of fumes, shavings, sawdust, dust, pneumatic transport, as cable glands.
| Code | Dimensions mm | Radius Of curvature mm | 5m clips For box n° |
|---|---|---|---|
| 11PVSP022/026 3 | 22x26 | 120 | 12 |
| 11PVSP032/036 3 | 32x36 | 130 | 6 |
| 11PVSP055/061 3 | 55x61 | 145 | 4 |
| 11PVSP075/081 3 | 75X81 | 185 | 4 |
| 11PVSP080/086 3 | 80x86 | 195 | 4 |
| 11PVSP095/101 3 | 95x101 | 235 | 4 |
| 11PVSP125/131 3 | 125x131 | 280 | 1 |
| 11PVSP150/156 3 | 150x156 | 350 | 1 |
| 11PVSP200/206 3 | 200x206 | 490 | 1 |
