AISI 316L STAINLESS STEEL PIPE
ONLINE CATALOGUE › HOSES › Gas and hot fume suction pipes
Download sheet in pdf format

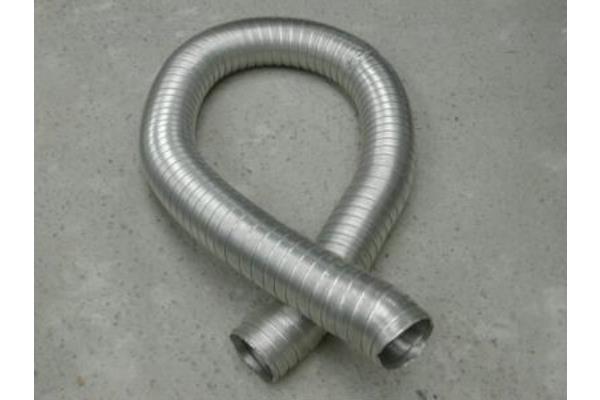

Flexible corrugated pipe in AISI 316L stainless steel, single-walled, compliant with UNI EN ISO 15465:2005. (Available in a double-wall version upon request).
Control tests according to UNI ISO 7658 standard. Non-combustible, class 0 pursuant to Ministerial Decree 06/26/84.
Color: matte steel.
Operating temperature 400° C.
Maximum operating pressure 2000 Pa
Maximum gas velocity 25 m/s Wall thickness 0.12 mm
Pipe diameters from 16 to 1000 mm
Packaging: 10 meter rolls of Ø 325 in bars
Use: conveying high-temperature fumes in flues, chimneys, industrial ovens, ventilation systems, air conditioning systems, extraction systems.
Control tests according to UNI ISO 7658 standard. Non-combustible, class 0 pursuant to Ministerial Decree 06/26/84.
Color: matte steel.
Operating temperature 400° C.
Maximum operating pressure 2000 Pa
Maximum gas velocity 25 m/s Wall thickness 0.12 mm
Pipe diameters from 16 to 1000 mm
Packaging: 10 meter rolls of Ø 325 in bars
Use: conveying high-temperature fumes in flues, chimneys, industrial ovens, ventilation systems, air conditioning systems, extraction systems.
