FLEX HOSE 300 double wall
ONLINE CATALOGUE › HOSES › Gas and hot fume suction pipes
Download sheet in pdf format

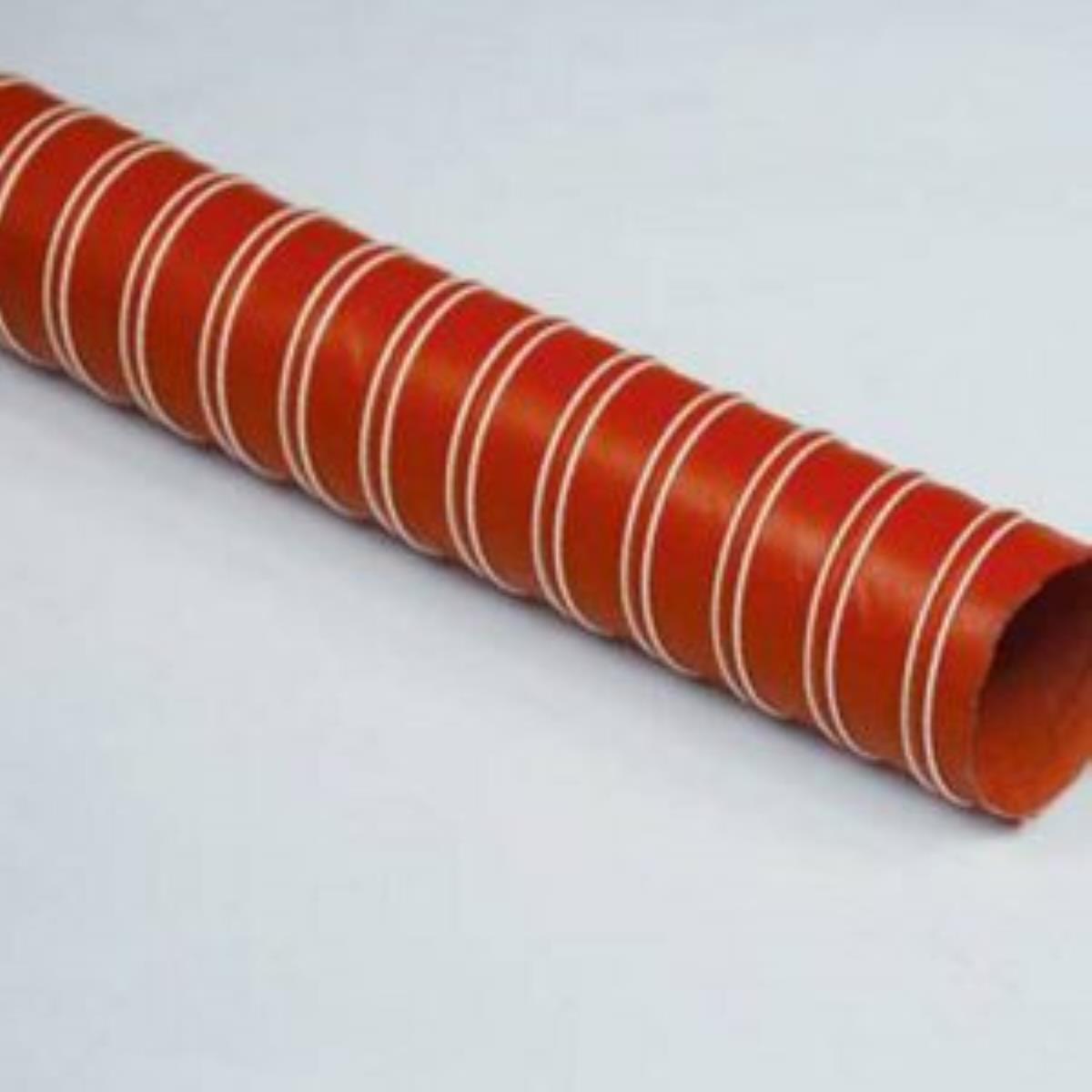

Flexible hose made of silicone-coated fiberglass fabric, reinforced by an internal spiral of harmonic steel wire, double external stitching cord in fiberglass. Very flexible, light and with great axial compressibility of approximately 30%.
Its double wall gives greater load-bearing structure and abrasion resistance without losing flexibility.
Brick red colour
Maximum pressure approximately 3 times the operating pressure.
Operating temperature: -60° +270°C (peaks of 300°).
Standard length 4 metres, on request in lengths up to 10 metres.
Use:
conveyance of air and gas at high and low temperatures in the presence of dust, in vehicles, engine compartments, hot air collectors, stoves.
Upon request, self-extinguishing in accordance with V0 (UL94).
Upon request, it can be supplied in sizes for use with sleeves at the ends
Its double wall gives greater load-bearing structure and abrasion resistance without losing flexibility.
Brick red colour
Maximum pressure approximately 3 times the operating pressure.
Operating temperature: -60° +270°C (peaks of 300°).
Standard length 4 metres, on request in lengths up to 10 metres.
Use:
conveyance of air and gas at high and low temperatures in the presence of dust, in vehicles, engine compartments, hot air collectors, stoves.
Upon request, self-extinguishing in accordance with V0 (UL94).
Upon request, it can be supplied in sizes for use with sleeves at the ends
| Item number | Dimensions Ø mm | Operating pressure bar | Vacuum bar | Curvature radius mm | Weight gr/m |
|---|---|---|---|---|---|
| 11SVDS300019 | 19 | 3.00 | 0.73 | 9 | 110 |
| 11SVDS300025 | 25 | 2.80 | 0.71 | 12 | 185 |
| 11SVDS300038 | 38 | 2.60 | 0.60 | 18 | 305 |
| 11SVDS300051 | 51 | 2.60 | 0.52 | 24 | 360 |
| 11SVDS300063 | 63 | 2.40 | 0.46 | 31 | 485 |
| 11SVDS300076 | 76 | 2.20 | 0.43 | 38 | 580 |
| 11SVDS300089 | 89 | 2.00 | 0.40 | 44 | 690 |
| 11SVDS300095 | 95 | 1.90 | 0.37 | 49 | 730 |
| 11SVDS300102 | 102 | 1.90 | 0.35 | 52 | 770 |
| 11SVDS300114 | 114 | 1.50 | 0.30 | 60 | 845 |
| 11SVDS300127 | 127 | 1.40 | 0.24 | 69 | 925 |
| 11SVDS300152 | 152 | 1.20 | 0.17 | 75 | 1200 |
| 11SVDS300178 | 178 | 1.00 | 1.20 | 90 | 1430 |
| 11SVDS300203 | 203 | 0.70 | 0.90 | 101 | 1650 |
| 11SVDS300250 | 250 | 0.50 | 0.70 | 150 | 2090 |
| 11SVDS300305 | 305 | 0.30 | 0.50 | 200 | 2550 |
