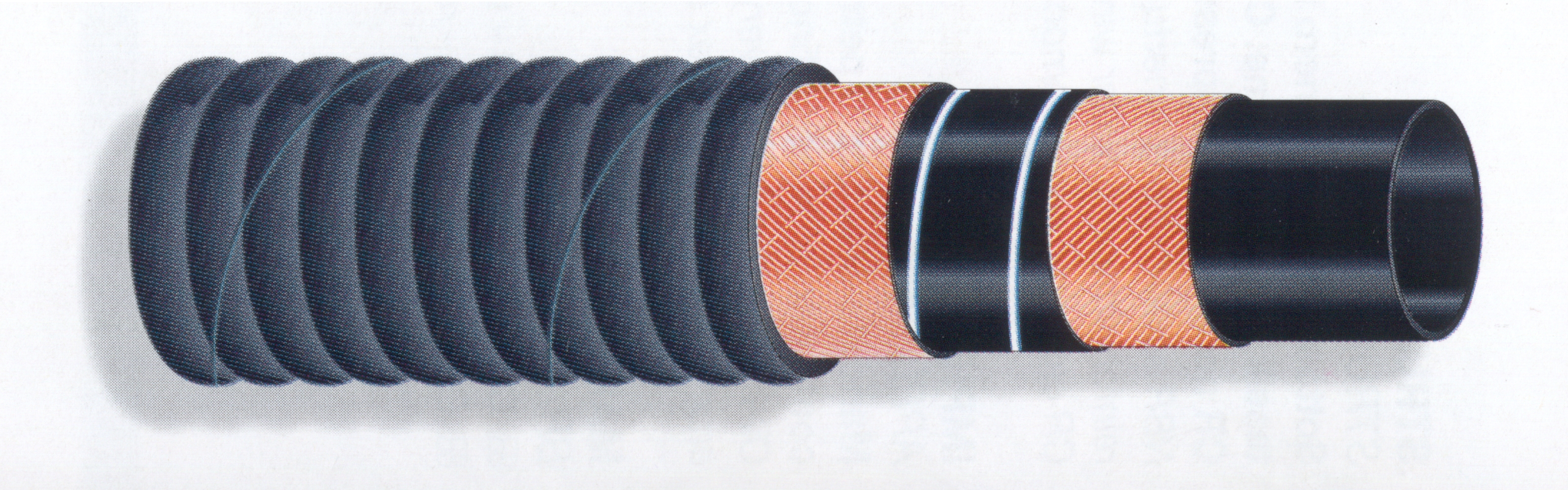

HOT-AIR 120 RUBBER HOSE
ONLINE CATALOGUE › HOSES › Gas and hot fume suction pipes
Download sheet in pdf format
HOSE FOR HOT AIR PASSAGE FOR MOTORS OR DRYERS
Flexible rubber hose composed of a smooth black EPDM rubber underlayer resistant to high temperatures with incorporated steel spiral and reinforcing textile inserts.
Anti-static black EPDM rubber cover
Operating temperature: -40° +120°
Operating pressure 1 bar, safety coefficient 3
Suction: from 500 to 100 mm Hg depending on the diameters
Minimum bend radius: 4 times the diameter of the internal hole of the pipe
On request, execution with smooth sleeves at the end on the size of use
Connection using clamps, collars, pressing.
Flexible rubber hose composed of a smooth black EPDM rubber underlayer resistant to high temperatures with incorporated steel spiral and reinforcing textile inserts.
Anti-static black EPDM rubber cover
Operating temperature: -40° +120°
Operating pressure 1 bar, safety coefficient 3
Suction: from 500 to 100 mm Hg depending on the diameters
Minimum bend radius: 4 times the diameter of the internal hole of the pipe
On request, execution with smooth sleeves at the end on the size of use
Connection using clamps, collars, pressing.
