Flexible hoses for liquids suitable for food use

ABRASIVE HOSE/10/SPO-BN FOOD GRADE - delivery

Description and technical data


Flexible hose for transferring abrasive FOOD products such as cereals, feed, dry seeds which generates high wear of the internal walls.
The extremely smooth and hard white internal surface facilitates the passage of flow, significantly reducing friction.

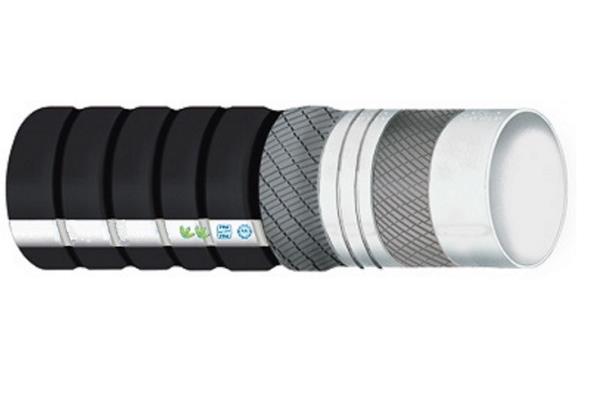

Tube in white food-grade rubber, high-resistance synthetic textile reinforcements and incorporated copper cable.
Corrugated cover in black EPDM rubber with canvas imprint, resistant to ozone and bad weather.
Steel spiral embedded in the wall

Working temperature -30°C +70°C (100°C peak).

On request: sizes for use, sleeves at the ends, specific fittings, product customisations.



code
diameters
mm
pressure
exercise
Cafe
radius of
curvature
mm
empty
Cafe
weight
theoretical
Kg/m
08G-ABR_10/SPO_050/065 50 10 230 0.9 2.07
08G-ABR_10/SPO_050/065 76 10 360 0.9 3.28
08G-ABR_10/SPO_050/065 102 10 450 0.9 5.15
08G-ABR_10/SPO_050/065 127 10 675 0.9 6.71
08G-ABR_10/SPO_050/065 152 10 900 0.9 11.81
