ENOLOGICAL TUBE
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format

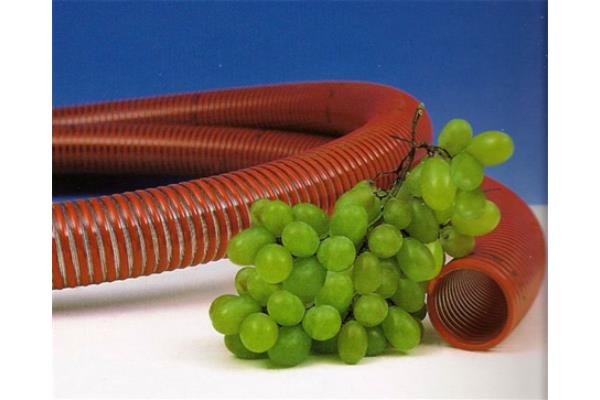

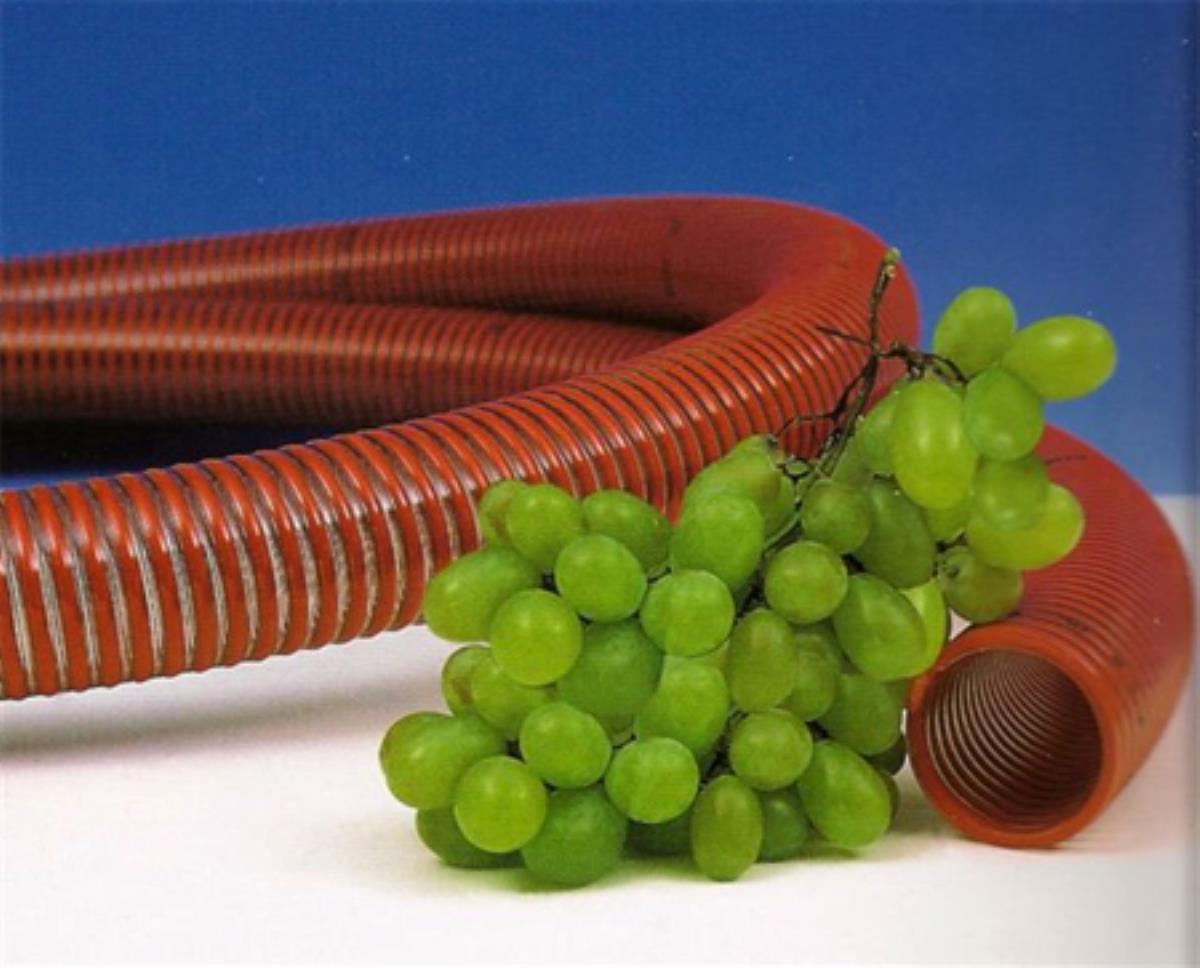

Flexible plasticized PVC hose with shock-proof and crush-proof rigid PVC reinforcement spiral. Resistant to the action of atmospheric agents and most chemical products. Smooth internal surface. Good resistance in suction and delivery.
Suitable for the passage of food liquids not containing fat and with a maximum alcohol content of 28%.
Application: food and wine industry
Compliant with Ministerial Decree DM 21/3/73 and subsequent amendments, EEC Directive 90/128 and amendments.
Operating temperature: -15° +60° C
Suitable for the passage of food liquids not containing fat and with a maximum alcohol content of 28%.
Application: food and wine industry
Compliant with Ministerial Decree DM 21/3/73 and subsequent amendments, EEC Directive 90/128 and amendments.
Operating temperature: -15° +60° C
| Code item | Dimensions Ø mm | radius of curvature mm | Operating pressure Cafe | empty Cafe | Roll length m |
|---|---|---|---|---|---|
| 04PLIQUIP0020R | 20x26.6 | 120 | 11 | 0.9 | 50 |
| 04PLIQUIP0025R | 25x32 | 150 | 10.5 | 0.9 | 50 |
| 04PLIQUIP0030R | 30x38 | 180 | 10 | 0.9 | 50 |
| 04PLIQUIP0032R | 32x40 | 192 | 10 | 0.9 | 50 |
| 04PLIQUIP0035R | 35x43.4 | 210 | 9 | 0.9 | 50 |
| 04PLIQUIP0038R | 38x47 | 228 | 8.5 | 0.9 | 50 |
| 04PLIQUIP0040R | 40x49 | 240 | 8 | 0.9 | 50 |
| 04PLIQUIP0045R | 45x54 | 270 | 8 | 0.9 | 50 |
| 04PLIQUIP0050R | 50x60 | 300 | 8 | 0.9 | 50 |
| 04PLIQUIP0060R | 60x71 | 360 | 7 | 0.9 | 50 |
| 04PLIQUIP0063R | 63x73.6 | 378 | 7 | 0.9 | 50 |
| 04PLIQUIP0070R | 70x82.4 | 420 | 6 | 0.9 | 50 |
| 04PLIQUIP0075R | 75x85 | 1380 | 350 | 0.9 | 50 |
| 04PLIQUIP0080R | 80x94 | 480 | 5.5 | 0.9 | 30 |
| 04PLIQUIP0090R | 90x105 | 540 | 5 | 0.9 | 30 |
| 04PLIQUIP0102R | 102x120 | 612 | 5 | 0.9 | 30 |
| 04PLIQUIP0110R | 110x128 | 770 | 4 | 0.8 | 30 |
| 04PLIQUIP0120R | 120x138 | 720 | 4 | 0.8 | 25 |
| 04PLIQUIP0125R | 125x143 | 875 | 3 | 0.8 | 25 |
| 04PLIQUIP0152R | 152x173.6 | 1216 | 2 | 0.7 | 20 |
