METAL BIO-PVC HOSE
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format

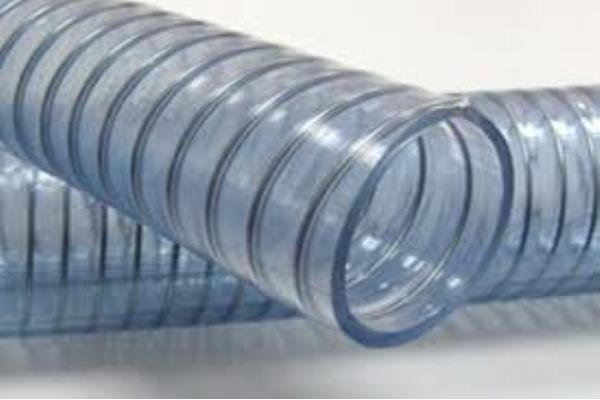

BIO-METAL PVC BioVinil flexible hose
first and only flexible PVC with bio-based plasticizer DOW ECOLIBRIUM .
It is an easily renewable alternative to phthalates and offers customers a better sustainable solution from a carbon footprint perspective.
This resin is more competitive than polyolefin resins, polyurethane and the most commonly used polymers on the market. It offers all the advantages of traditional vinyl: malleability, resistance to UV rays and durability. it also offers improvements in thermal stability, plasticizing efficiency, abrasion resistance and tensile strength, cost-effectiveness. Also usable for wine and alcoholic liquors up to 20% concentration, especially suitable for bottling machines and food dispensers.
COLOR: transparent with reinforcing steel spiral and polyester braid
TEMPERATURE: -10° +60° C
Regulations and approvals:
Reg, EU 10/2011 (classes A, B, C)
FDA (21 CFR Parts 170-199 Article 175.300)
first and only flexible PVC with bio-based plasticizer DOW ECOLIBRIUM .
It is an easily renewable alternative to phthalates and offers customers a better sustainable solution from a carbon footprint perspective.
This resin is more competitive than polyolefin resins, polyurethane and the most commonly used polymers on the market. It offers all the advantages of traditional vinyl: malleability, resistance to UV rays and durability. it also offers improvements in thermal stability, plasticizing efficiency, abrasion resistance and tensile strength, cost-effectiveness. Also usable for wine and alcoholic liquors up to 20% concentration, especially suitable for bottling machines and food dispensers.
COLOR: transparent with reinforcing steel spiral and polyester braid
TEMPERATURE: -10° +60° C
Regulations and approvals:
Reg, EU 10/2011 (classes A, B, C)
FDA (21 CFR Parts 170-199 Article 175.300)
| Code | Dimension mm | Weight g/m | radius curvature mm | Maximum pressure Bar | Burst pressure Bar | Depression mH2O | Rolls m |
|---|---|---|---|---|---|---|---|
| 05BIOMETAL012 | 12x20 | 275 | 36 | 19 | 57 | 10 | 60 |
| 05BIOMETAL020 | 20x29 | 470 | 60 | 14 | 42 | 10 | 60 |
| 05BIOMETAL025 | 25x35 | 650 | 75 | 12 | 36 | 10 | 60 |
| 05BIOMETAL032 | 32x43 | 880 | 96 | 11 | 33 | 9 | 60 |
| 05BIOMETAL038 | 38x49 | 1025 | 110 | 10 | 30 | 9 | 30 |
| 05BIOMETAL040 | 40x51 | 1070 | 120 | 10 | 30 | 9 | 30 |
| 05BIOMETAL050 | 50x63 | 500 | 150 | 8 | 24 | 8 | 30 |
| 05BIOMETAL060 | 60x74 | 1640 | 180 | 7 | 21 | 8 | 30 |
| 05BIOMETAL063 | 63x77 | 2065 | 190 | 7 | 21 | 8 | 30 |
| 05BIOMETAL076 | 76x91 | 2160 | 230 | 6 | 18 | 7 | 30 |
| 05BIOMETAL102 | 102x118 | 2660 | 310 | 4 | 12 | 7 | 20 |
