MILK PIPE/D1
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format
Non-toxic hose expressly designed for the transfer of milk and derivatives according to the following standards:
- Ministerial Decree 03/21/1973
- N°220 of 04/26/1993
- REG.EU 10/2011
- CE 1935/2004
- 2007/19 simulants A, B, C, D1 and subsequent modifications
- VTT RULES for Scandinavian countries

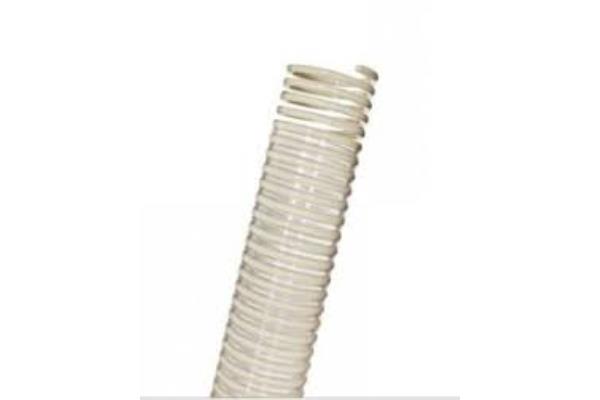

Transparent plasticized PVC tube with WHITE shockproof rigid PVC reinforcement spiral. Smooth internal and external surface, light and very flexible.
Operating temperature. -15°C +60°C
- Ministerial Decree 03/21/1973
- N°220 of 04/26/1993
- REG.EU 10/2011
- CE 1935/2004
- 2007/19 simulants A, B, C, D1 and subsequent modifications
- VTT RULES for Scandinavian countries
Transparent plasticized PVC tube with WHITE shockproof rigid PVC reinforcement spiral. Smooth internal and external surface, light and very flexible.
Operating temperature. -15°C +60°C
Code
| OR | Weight
g/m | Empty
m_H2O | radius of curvature
mm | Rolls
m |
|---|---|---|---|---|---|
| 04PLIQUIFF025 | 25 | 400 | 8 | 120 | 50 |
| 04PLIQUIFF030 | 30 | 450 | 8 | 160 | 50 |
| 04PLIQUIFF032 | 32 | 480 | 8 | 160 | 50 |
| 04PLIQUIFF040 | 40 | 600 | 7 | 200 | 50 |
| 04PLIQUIFF050 | 50 | 850 | 7 | 250 | 50 |
| 04PLIQUIFF060 | 60 | 1000 | 6 | 320 | 50 |
| 04PLIQUIFF075 | 75 | 1400 | 5 | 440 | 50 |
| 04PLIQUIFF080 | 80 | 1600 | 4 | 480 | 30 |
| 04PLIQUIFF102 | 102 | 2200 | 3 | 620 | 30 |
