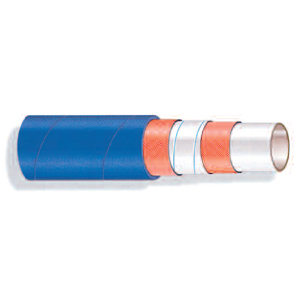

MULTIFOOD TUBE - A
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format
Multipurpose hose suitable for delivery and suction of:
1. edible oils, animal and/or vegetable fats, milk and derivatives
2. non-fatty products such as: fruit juices, water, alcoholic beverages with a maximum alcohol content of 50%.
Suitable for decanting tanks and for liquid food processing and filling systems and for the transport of powdered materials up to +120° C.

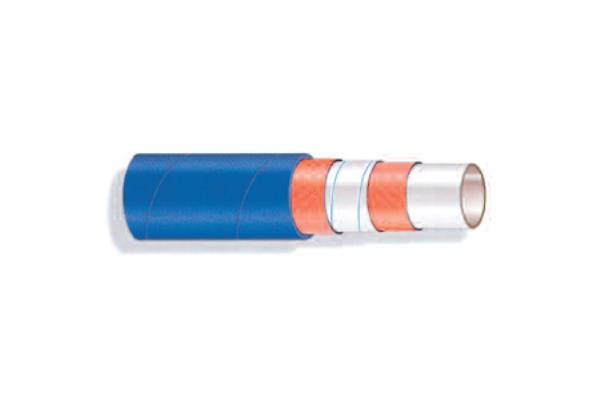

Smooth, odorless and tasteless white NBR rubber tube without welding to avoid bacterial propagation.
BLUE NBR cover with cloth finish, resistant to ozone, atmospheric agents, fuels and abrasion.
APPROVALS:
- BfR
- FDA title 21 art.177.2600 (f) for fatty foods
- Ministerial Decree 03/21/73 and amendments.
- ADI free.
- CE 1935/2005
Resistant to cleaning with detergents and sterilization. ADI Free - Phatalates Free - Plasticiser Free Reinforcement with braided synthetic thread and steel spiral embedded in the wall.
Operating temperature: -20° + 80° peaks of 110° maximum minutes.
Operating pressure: 10 bar, burst 30 bar.
Maximum suction: 0.9 bar
PACKAGING: 40 meter rolls
Other versions:
anti-crushing dock with plastic spiral starting from Ø 50
corrugated with sleeves at the end for greater flexibility.
Can be connected with fittings on request such as: CLAMP – DIN – GAROLLA - Stainless steel FLANGES.
Fixing fittings with clamps, pressed ring nuts, band-it tape or assembled with vulcanised fittings.
1. edible oils, animal and/or vegetable fats, milk and derivatives
2. non-fatty products such as: fruit juices, water, alcoholic beverages with a maximum alcohol content of 50%.
Suitable for decanting tanks and for liquid food processing and filling systems and for the transport of powdered materials up to +120° C.
Smooth, odorless and tasteless white NBR rubber tube without welding to avoid bacterial propagation.
BLUE NBR cover with cloth finish, resistant to ozone, atmospheric agents, fuels and abrasion.
APPROVALS:
- BfR
- FDA title 21 art.177.2600 (f) for fatty foods
- Ministerial Decree 03/21/73 and amendments.
- ADI free.
- CE 1935/2005
Resistant to cleaning with detergents and sterilization. ADI Free - Phatalates Free - Plasticiser Free Reinforcement with braided synthetic thread and steel spiral embedded in the wall.
Operating temperature: -20° + 80° peaks of 110° maximum minutes.
Operating pressure: 10 bar, burst 30 bar.
Maximum suction: 0.9 bar
PACKAGING: 40 meter rolls
Other versions:
anti-crushing dock with plastic spiral starting from Ø 50
corrugated with sleeves at the end for greater flexibility.
Can be connected with fittings on request such as: CLAMP – DIN – GAROLLA - Stainless steel FLANGES.
Fixing fittings with clamps, pressed ring nuts, band-it tape or assembled with vulcanised fittings.
| Item | Dimensions OR mm | WEIGHT Kg/m | radius of curvature mm |
|---|---|---|---|
| 05MULTIFOODA019 | 19x29 | 0.67 | 80 |
| 05MULTIFOODA025 | 25x35 | 0.80 | 125 |
| 05MULTIFOODA030 | 30x42 | 1.11 | 150 |
| 05MULTIFOODA032 | 32x44 | 1.23 | 160 |
| 05MULTIFOODA038 | 38x50 | 1.38 | 190 |
| 05MULTIFOODA040 | 40x52 | 1.41 | 200 |
| 05MULTIFOODA050 | 51x64 | 1.88 | 255 |
| 05MULTIFOODA060 | 60x73 | 2.24 | 300 |
| 05MULTIFOODA063 | 63x77 | 2.60 | 320 |
| 05MULTIFOODA065 | 65x79 | 2.66 | 325 |
| 05MULTIFOODA070 | 70x83 | 2.86 | 360 |
| 05MULTIFOODA075 | 76x89 | 3.00 | 390 |
| 05MULTIFOODA080 | 80x93 | 3.17 | 440 |
| 05MULTIFOODA090 | 90x104 | 4.08 | 500 |
| 05MULTIFOODA102 | 102x116 | 4.60 | 560 |
