PHARMACEUTICAL GRADE FOOD GRADE PLATINUM SILICONE HOSE
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format

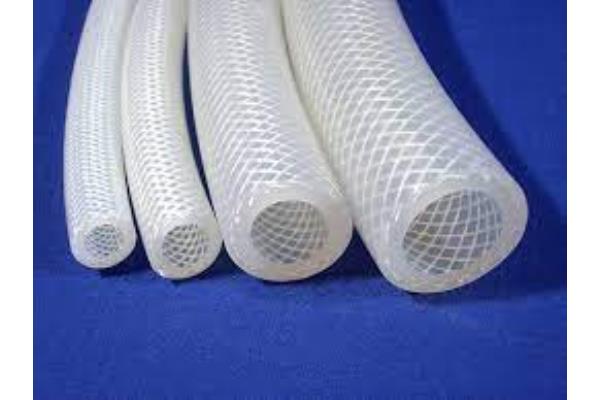

PLATINUM silicone hoses produced by extrusion with a polyester braid woven inside the hose.
Applications: Suitable for transporting high-purity liquids in the food industry. It offers an extremely wide range of applications. The design balances strength and lightness, making it easy to handle. Thanks to its translucent appearance, the product inside the tube is partially visible during passage. Suitable for delivery only.
Characteristics:
- Odorless, tasteless and completely non-toxic.
- Can be equipped with stainless steel fittings
- The standard manufacturing length is 25 meters
- Temperature: -40ºC to +180ºC
Construction: Translucent and smooth interior and exterior. Extrusion construction with polyester yarn inside the tube. Food-grade silicone.
REFERENCE REGULATIONS
FDA:2007/19/EC A+B+C
AS 2069 EC 1935/2004 (A,B,C,D1)
diameter internal mm | diameter external mm | pressure of exercise bar | Rolls m |
| 4.0 | 9.0 | 9.0 | 25 |
| 5.0 | 11.0 | 9.0 | 25 |
| 6.3 | 12.3 | 9.0 | 25 |
| 9.5 | 16.5 | 7.0 | 25 |
| 12.7 | 20.7 | 5.5 | 25 |
| 16.0 | 24.0 | 4.0 | 25 |
| 19.0 | 28.0 | 3.5 | 25 |
| 25.0 | 35.0 | 3.0 | 25 |
| 32.0 | 42.0 | 2.0 | 25 |
| 38.0 | 48.0 | 2.0 | 25 |
