TOTAL PU OIL FOOD LIQUIDS
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format

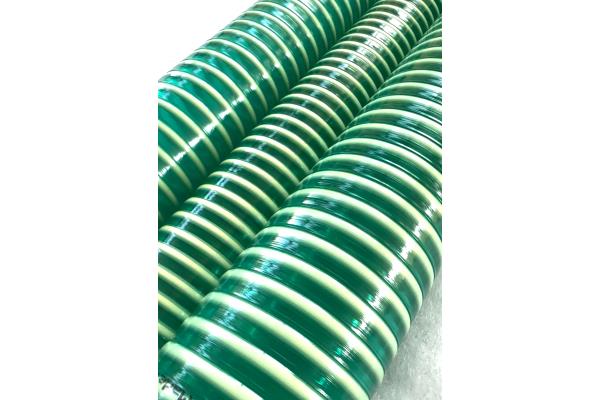

Spiral PVC hose with smooth food grade polyurethane underlayer and shock-absorbing PVC reinforcement spiral.
Characteristics
Non-toxic, phthalate-free hose suitable for the delivery and suction of liquids, in particular vegetable oil and fatty substances suitable for human consumption.
Smooth interior in polyurethane, particularly resistant to bacterial action, atmospheric agents and most chemical products.
Certifyable for the transfer of food liquids according to the latest European regulations on the subject:
- EC 1935/2004
- EU 10/2011 (sym. A,B, D, D1 and D2) with an alcohol content of up to 50°
Transparent Green Color
Operating temperature -10°C +60°C
Characteristics
Non-toxic, phthalate-free hose suitable for the delivery and suction of liquids, in particular vegetable oil and fatty substances suitable for human consumption.
Smooth interior in polyurethane, particularly resistant to bacterial action, atmospheric agents and most chemical products.
Certifyable for the transfer of food liquids according to the latest European regulations on the subject:
- EC 1935/2004
- EU 10/2011 (sym. A,B, D, D1 and D2) with an alcohol content of up to 50°
Transparent Green Color
Operating temperature -10°C +60°C
| Diameter internal | Weight | Radius of curvature | Pressure of exercise | Pressure of explosion | vacuum packed | rolls | |
| inch | mm | gr/m | mm | bar | bar | m/H2O | m |
| 1" | 25 | 458 | 125 | 5 | 15 | 9 | 30 |
| 1" 3/16 | 30 | 555 | 150 | 5 | 15 | 9 | 30 |
| 1"3/8 | 35 | 640 | 175 | 5 | 15 | 9 | 30 |
| 1"1/2 | 38 | 680 | 185 | 5 | 15 | 9 | 30 |
| 1"9/16 | 40 | 722 | 250 | 5 | 15 | 9 | 30 |
| 2" | 50 | 1020 | 250 | 5 | 15 | 9 | 30 |
| 2"3/8 | 60 | 1360 | 300 | 5 | 15 | 9 | 30 |
| 2"3/4 | 70 | 1600 | 350 | 5 | 15 | 9 | 30 |
| 3"1/8 | 80 | 1870 | 400 | 4 | 12 | 9 | 30 |
| 4" | 102 | 3060 | 550 | 3 | 9 | 9 | 20 |
