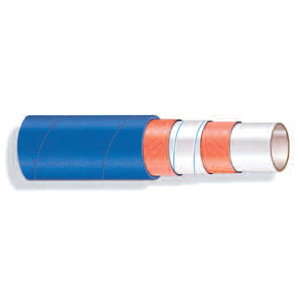

Multipurpose hose in BUTYL rubber - IIR white, suitable for the delivery and suction of various liquids used in human nutrition such as: drinking water, milk and dairy products, yogurt, vegetable and animal fats, wines, musts, fruit juices, beer, cider, vinegar, alcohol up to 96%. Designed for transferring tanks and processing plants, and filling food liquids.
Underlayer:
made of odorless and tasteless white rubber in smooth white BUTYLE without welds to prevent bacterial spread, resistant to cleaning with detergents and sterilization suitable for maintaining the flavor and aroma of the conveyed fluid.
Reinforcement structure:
braided synthetic wire with steel spiral embedded in the wall.
Coverage:
BLUE color, canvas print, resistant to ozone and atmospheric agents.
Smooth surface, canvas print
- Operating temperature -20 +120°C sterilization with steam up to 130°C maximum for thirty minutes.
- Operating pressure 10 bar - burst 30 bar.
- Maximum suction at 0.9 bar.
Standards and approvals according to :
Directives of the American FDA legislation 21 CFR 177.2600
German Legislation Guidelines BfR Empfelung XXI Category 2
3-A Sanitary Standards 18-03
Ministerial Decree Directives 21.03.1973 and subsequent amendments
FREE FROM THE PRESENCE OF PHTHALATES.
Connectable with CLAMP – DIN – GAROLLA - stainless steel FLANGES fittings.
Fixing fittings with cable ties, pressed rings, band-it tape
or assembled with vulcanized fittings.
Sold in 40-meter rolls or assembled in the required length.
Code
| Diameters
Øi x Øe
mm | Radius of
curvature
mm | Aspiration
bar | Weight
Kg/m |
|---|
| 05GCITER019 | 19x31 | 40 | 0.9 | 0.63 |
| 05GCITER025 | 25x37 | 55 | 0.9 | 0.77 |
| 05GCITER032 | 32x44 | 70 | 0.9 | 0.92 |
| 05GCITER035 | 35x47 | 75 | 0.9 | 1.01 |
| 05GCITER038 | 38x52 | 80 | 0.9 | 1.32 |
| 05GCITER040 | 40x54 | 85 | 0.9 | 1.38 |
| 05GCITER051 | 51x65 | 110 | 0.9 | 1.84 |
| 05GCITER060 | 60x76 | 130 | 0.8 | 2.41 |
| 05GCITER063 | 63x79 | 140 | 0.8 | 2.51 |
| 05GCITER076 | 76x92 | 170 | 0.8 | 2.85 |
| 05GCITER080 | 80x96 | 180 | 0.7 | 3.00 |
| 05GCITER102 | 102x122 | 220 | 0.7 | 4.82 |
