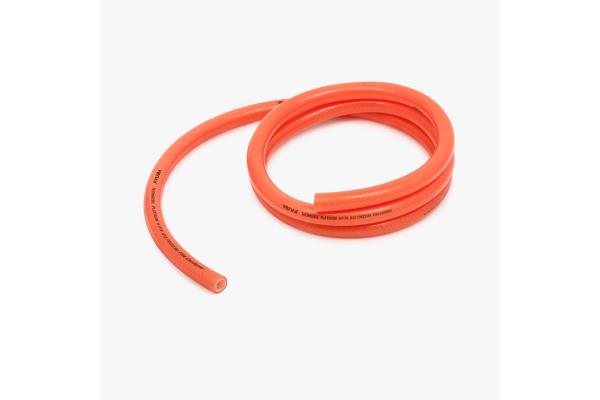

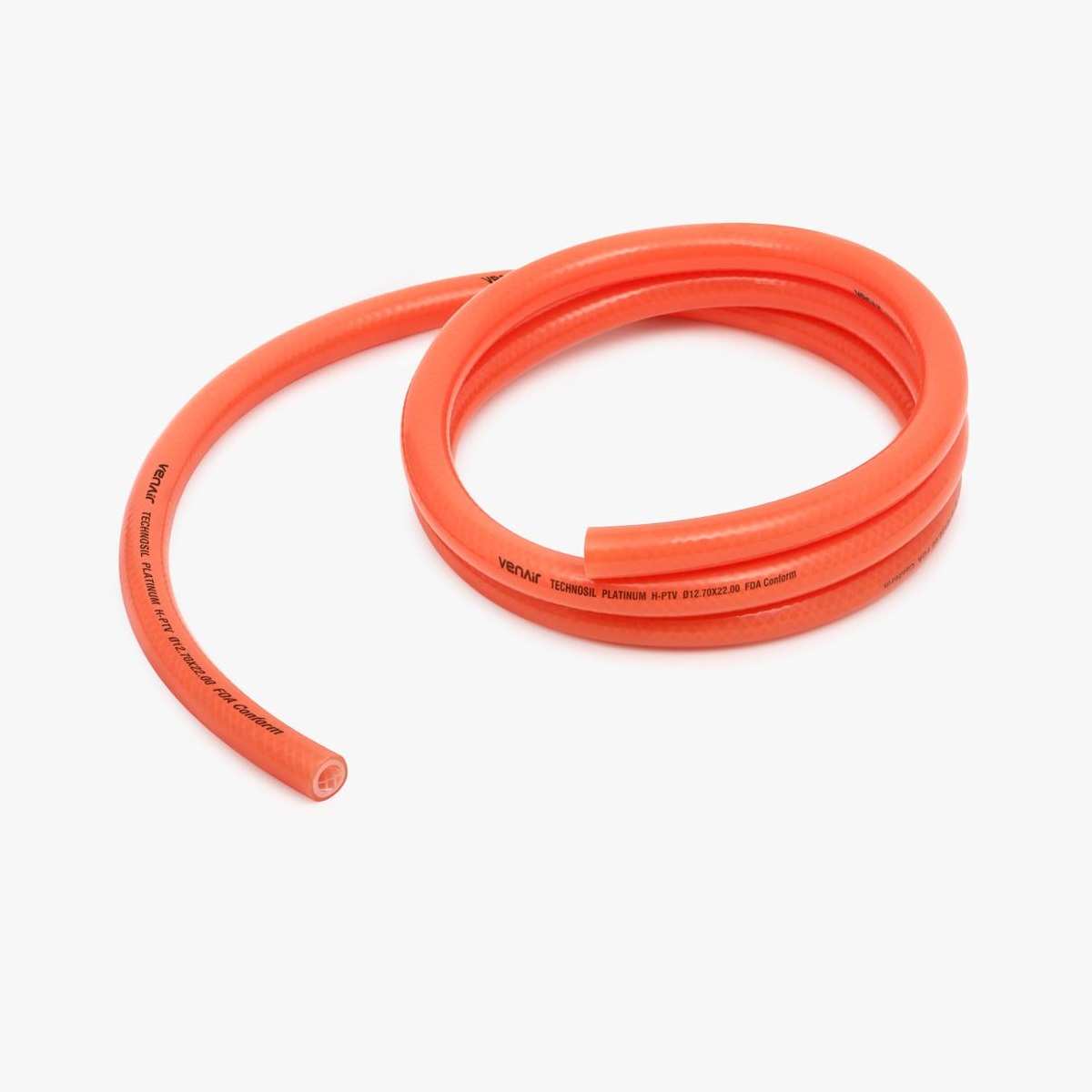

VEIN TUBE TECHNOSIL PLATINUM H-PTV orange
ONLINE CATALOGUE HOSES Hoses for food products
Download sheet in pdf format
The VenaŽTechnosil Platinum H-PTV hose is particularly suitable for the transport of liquid or semi-liquid fluids in the food, cosmetic, chemical and pharmaceutical industries, at high temperatures and under a certain pressure.
Odorless, tasteless and completely non-toxic.
It can work in vacuum conditions.
It can be equipped with 316L stainless steel fittings on each end with a roughness value of less than 0.8 ĩm (or 0.5 ĩm on request).
The standard production length is 20 meters (65.12 feet) and 10 meters (32.81 feet), although they can be produced in any length required.
Temperature: -60°C (-75F) to +220°C (428F)
Produced by extrusion with a glass fiber yarn woven between the translucent inner layer and the orange outer layer. It is particularly suitable for the transport of liquid or semi-liquid fluids in the food, cosmetic, chemical and pharmaceutical industries, at high temperatures and below some pressure.
- Odorless, tasteless and completely non-toxic.
- It can work in vacuum conditions.
- It can be equipped with 316L stainless steel fittings on each end with a roughness value of less than 0.8 ĩm (or 0.5 ĩm on request).
- The standard production length is 20 metres, although they can be produced in any length required.
Operating Temperature: -60°C (-75F) to +220°C (428F)
| INTERNAL DIAMETER | INTERNAL DIAMETER | OUTER DIAMETER | OPERATING PRESSURE | BURST PRESSURE |
| mm | inch | mm | Cafe | Cafe |
| 4.00 | - | 9 | 20 | 60 |
| 4.77 | 3/16" | 11 | 18 | 53 |
| 6.35 | 1/4" | 12 | 17 | 50 |
| 7.93 | 5/16" | 15 | 15 | 45 |
| 9.52 | 3/8" | 17 | 14 | 42 |
| 12.70 | 1/2" | 22 | 11 | 34 |
| 15.87 | 5/8" | 25 | 10 | 30 |
| 19.05 | 3/4" | 31 | 7 | 22 |
| 25.40 | 1" | 38 | 6 | 18 |
| 31.75 | 1"1/4 | 46 | 5 | 15 |
