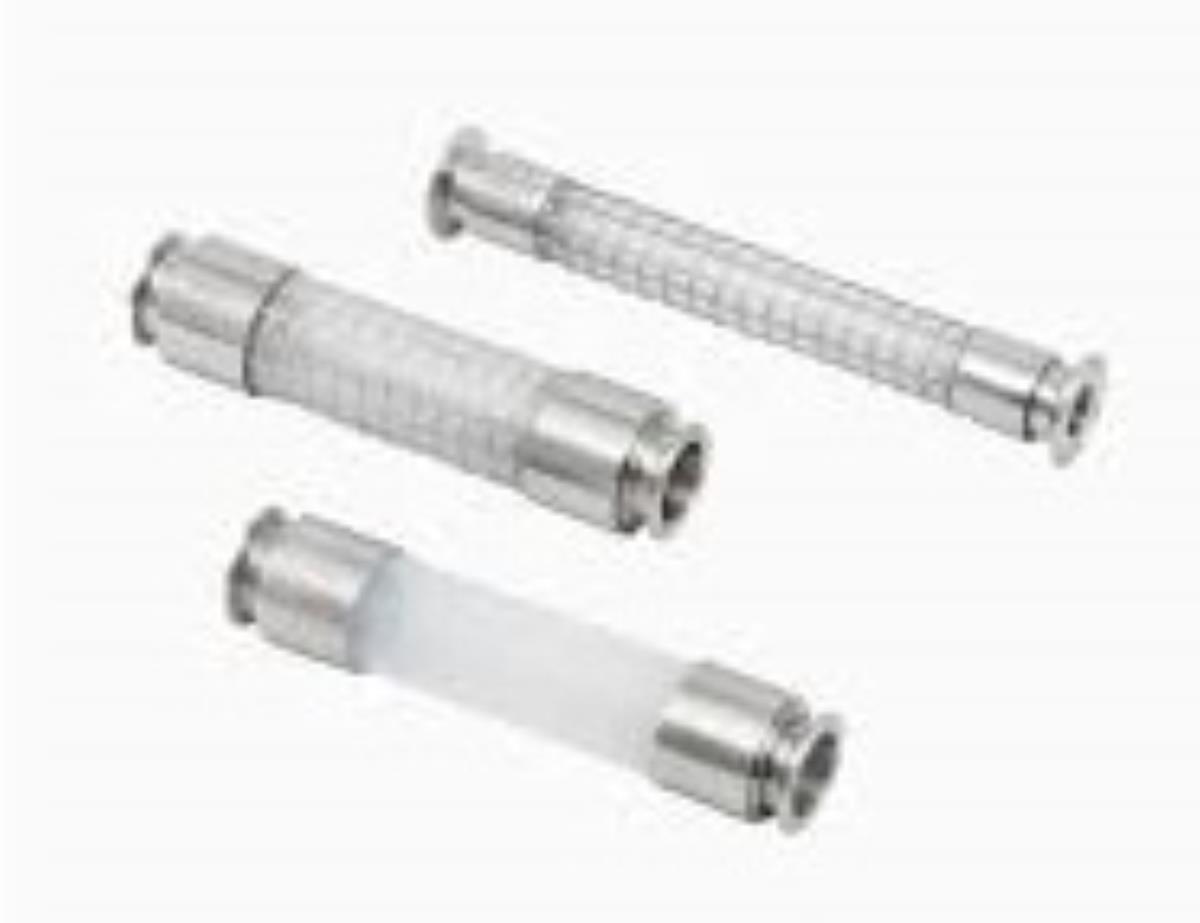

VENA TUBE VIEW
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format
This product is specifically designed for the pharmaceutical and food industries.
It is recommended for installations where visual inspection of the transported material is required.
It can be mounted in-line and helps operators visualize product flow in any process or system.
Property
UV resistant. Smooth, transparent, and non-sticky surface. High level of transparency.
Durable: For long-term use, compatible with many chemicals and aggressive products.
Operating temperature range -60ºC to +180ºC.
This product is equipped with clamping gaskets at the ends.
A version with armored housing is also available upon request.
This product is made of fluoropolymer (FEP).
Limitations : the chemical compatibility of the fluid with the FEP.
FEP regulations produced in compliance with :
US FDA Standard 21 CFR 177.1550
EC Regulation 1935/2004.
The FEP used complies with EU Directive 2002/95/ECC for the restriction of the use of hazardous substances (RoHS)
USP Class VI, in vivo testing.
Outer layer: VMQ silicone, smooth and white
Reinforcement: PFA, inner layer
Inner layer: translucent and completely smooth.
Temperature: -55ºC +180ºC (-67ºF / 356ºF)
Production length On request (maximum 3 m / 10 ft).
It is recommended for installations where visual inspection of the transported material is required.
It can be mounted in-line and helps operators visualize product flow in any process or system.
Property
UV resistant. Smooth, transparent, and non-sticky surface. High level of transparency.
Durable: For long-term use, compatible with many chemicals and aggressive products.
Operating temperature range -60ºC to +180ºC.
This product is equipped with clamping gaskets at the ends.
A version with armored housing is also available upon request.
This product is made of fluoropolymer (FEP).
Limitations : the chemical compatibility of the fluid with the FEP.
FEP regulations produced in compliance with :
US FDA Standard 21 CFR 177.1550
EC Regulation 1935/2004.
The FEP used complies with EU Directive 2002/95/ECC for the restriction of the use of hazardous substances (RoHS)
USP Class VI, in vivo testing.
Outer layer: VMQ silicone, smooth and white
Reinforcement: PFA, inner layer
Inner layer: translucent and completely smooth.
Temperature: -55ºC +180ºC (-67ºF / 356ºF)
Production length On request (maximum 3 m / 10 ft).
