HOSE FOR PRESSURE WASHERS
ONLINE CATALOGUE › HOSES › Hot water hoses
Download sheet in pdf format
Flexible rubber hose with double metal braid incorporated for reinforcement.
Smooth internal surface and external canvas impression, temperature resistant rubber underlayer. Micro-perforated synthetic rubber cover resistant to atmospheric agents and abrasion, black or stain-resistant blue on request.
Supplied with pre-assembled fittings by pressing, with anti-heat rubber sleeves at the end.
Usage: Passage of hydraulic, mineral and biological oils, especially used for water or water-emulsified oil mixtures.
Standard lengths available: 10 – 15 – 20 metres.
Operating temperature: -10° +155° C.
Smooth internal surface and external canvas impression, temperature resistant rubber underlayer. Micro-perforated synthetic rubber cover resistant to atmospheric agents and abrasion, black or stain-resistant blue on request.
Supplied with pre-assembled fittings by pressing, with anti-heat rubber sleeves at the end.
Usage: Passage of hydraulic, mineral and biological oils, especially used for water or water-emulsified oil mixtures.
Standard lengths available: 10 – 15 – 20 metres.
Operating temperature: -10° +155° C.
| Dimension Ø mm | Bar working pressure | Burst pressure Bar | Curvature radius mm | Weight Kg/m |
|---|---|---|---|---|
| 6 - 1/4" | 400 | 1600 | 75 | 0.29 |
| 8 - 5/16" | 400 | 1600 | 85 | 0.35 |
| 10 - 3/8" | 400 | 1600 | 90 | 0.46 |
| 12 - 1/2" | 300 | 1200 | 130 | 0.51 |
Related products

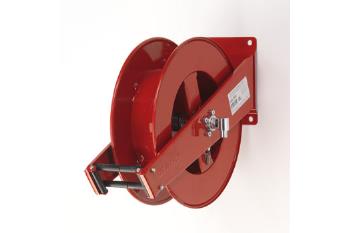

AUTOMATIC WALL MOUNTED HOSE REEL
