MULTI 20 HOT
ONLINE CATALOGUE › HOSES › Hot water hoses
Download sheet in pdf format
Multipurpose hose for hot water and chemicals, excellent resistance to aging
Applications
Multipurpose hose with excellent aging resistance. Suitable for air, cold water, and hot water. Also suitable for pressurized circulation of ester-based paints, ketones, alcohols, and many other chemicals.
Benefits
- Coating resistant to splashes of corrosive products.
- Silicone free.
- Flexible at all temperatures.
- Conductive tube and jacket.
- Silicone free.
- Flexible at all temperatures.
- Conductive tube and jacket.

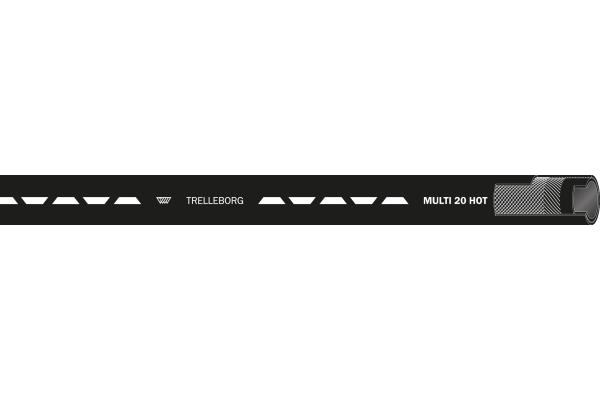

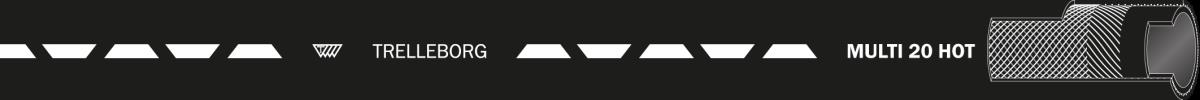

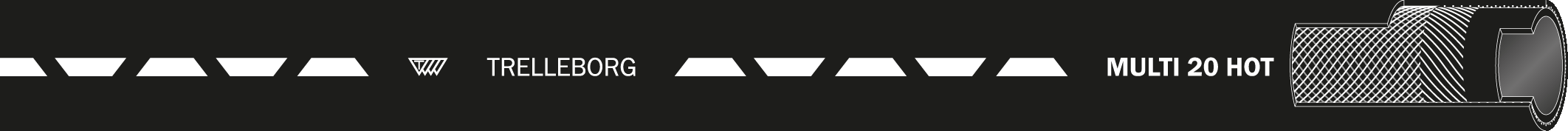

Smooth, black EPDM rubber hose . Reinforced with synthetic threads. Smooth, black EPDM outer sheath . Temperature range : -30° to +100° C.
Internal diameter | External diameter | Operating pressure | Burst pressure | Curvature radius mm | Weight | Length |
6 | 13 | 20 | 80 | 40 | 0.14 | 40 |
8 | 15 | 20 | 80 | 50 | 0.17 | 40 |
10 | 17 | 20 | 80 | 60 | 0.19 | 40 |
13 | 21 | 20 | 80 | 80 | 0.28 | 40 |
16 | 24 | 20 | 80 | 100 | 0.33 | 40 |
19 | 28 | 20 | 80 | 115 | 0.43 | 40 |
25 | 35 | 20 | 80 | 150 | 0.61 | 40 |
