Hydraulic hoses

SAE 100 R4 HOSE

Description and technical data

Pipe suitable for the delivery of mineral oils in hydraulic systems.
Complies with EN 854 - SAE 100 R4 standard for the passage of lubricants and fuels
with an aromatic content of less than 40%.

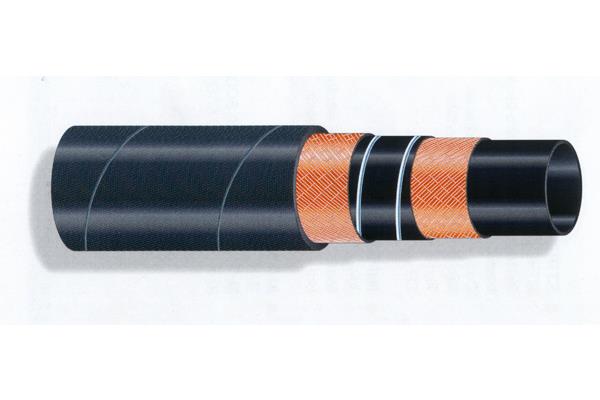

Smooth black NBR rubber inner layer, with textile reinforcement and embedded steel spiral.
Black NBR/PVC rubber cover with canvas finish, resistant to hydrocarbons and atmospheric agents.
Operating temperature: -40° +100° C.

Code	Diameter mm	Bar job pressure	Burst pressure bar	Radius of curvature mm	Empty bar	Packages m
13GR400000013	13x23	21	83	40	0.9	40
13GR400000016	16x26	21	83	50	0.9	40
13GR400000020	19x32	21	83	60	0.9	40/61
13GR400000025	25x38	17	69	75	0.9	40/61
13GR400000030	30x40	16	65	90	0.9	40/61
13GR400000032	32x45	14	55	100	0.9	40/61
13GR400000035	35x45	12	50	105	0.9	40/61
13GR400000038	38x52	10	41	115	0.9	40/61
13GR400000040	40x50	10	41	120	0.9	40/61
13GR400000042	42x52	10	30	126	0.9	40/61
13GR400000045	45x56	10	30	135	0.9	40/61
13GR400000050	51x64	10	30	200	0.9	40/61
13GR400000060	60x72	10	30	240	0.8	40/61
13GR400000063	63.5x78	10	30	255	0.8	40/61
13GR400000070	70x82	10	30	280	0.8	40/61
13GR400000076	76x88	10	30	300	0.8	40/61
13GR400000080	80x94	10	30	320	0.8	40/61
13GR400000090	90x103	10	30	360	0.8	40/61
13GR400000102	102x116	10	30	400	0.7	40/61
13GR400000110	110x126	10	30	450	0.7	40/61
13GR400000127	127x143	10	30	635	0.7	40/61
13GR400000152	152x170	10	30	760	0.7	40/61
13GR400000203	203x225	10	30	1218	0.5	40/61
