BAZ/TR. PIPE
ONLINE CATALOGUE › HOSES › Hydrocarbon delivery hoses
Download sheet in pdf format

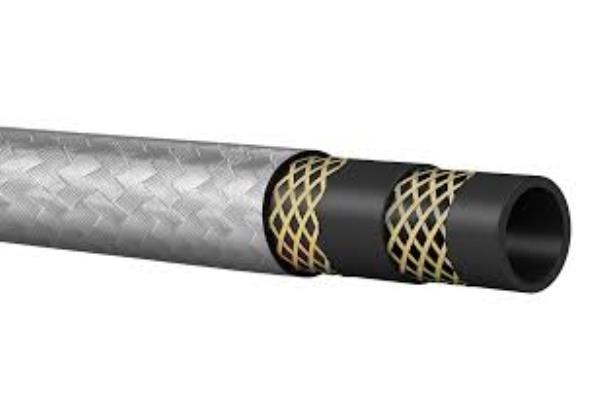

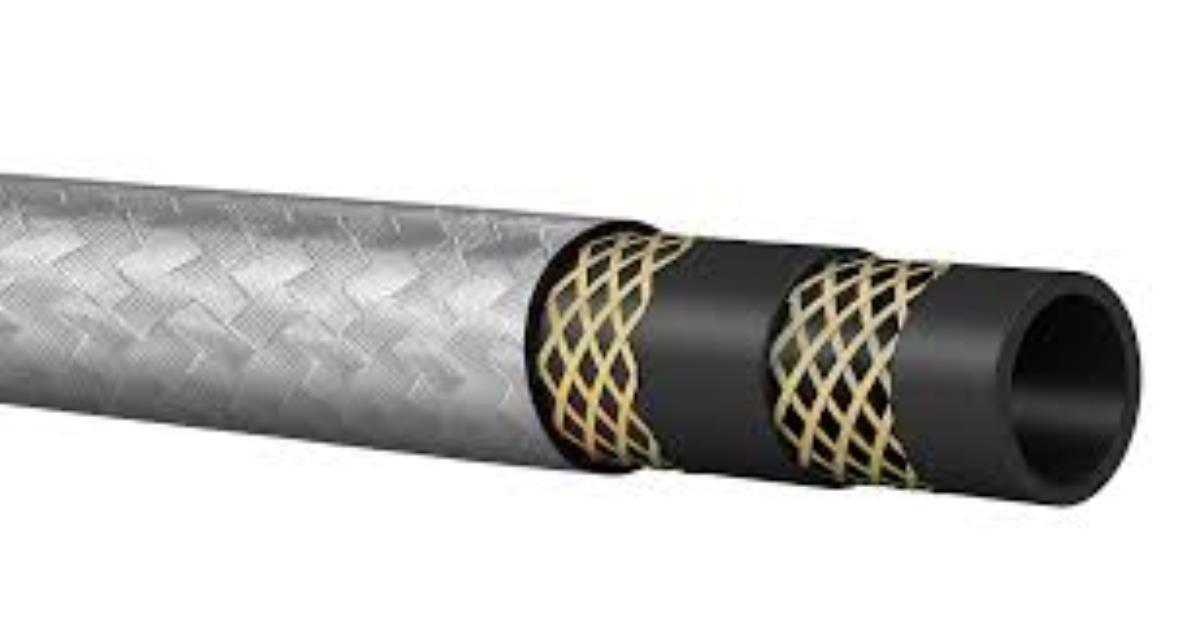

BLACK NITRILE RUBBER HOSE SUITABLE FOR THE TRANSFER OF FUELS IN GENERAL, OILS, DIESEL, PETROL.
REFERENCE STANDARD EN 590:2010
MAXIMUM WORKING PRESSURE: 10 bar
WORKING TEMPERATURE: -20° +80°C
Smooth NBR rubber tube resistant to petroleum products with aromatic content not exceeding 40%. High resistance textile yarn reinforcement.
Antistatic black Nitrile rubber cover (R<1MO/m-ISO R 1307)
AVAILABLE WITH GALVANIZED STEEL COVERING
On request also with stainless steel wire.
REFERENCE STANDARD EN 590:2010
MAXIMUM WORKING PRESSURE: 10 bar
WORKING TEMPERATURE: -20° +80°C
Smooth NBR rubber tube resistant to petroleum products with aromatic content not exceeding 40%. High resistance textile yarn reinforcement.
Antistatic black Nitrile rubber cover (R<1MO/m-ISO R 1307)
AVAILABLE WITH GALVANIZED STEEL COVERING
On request also with stainless steel wire.
| Dimensions | Rolls |
|---|---|
| 5X12 | 100 |
| 6X12 | 100 |
| 7X13 | 100 |
| 8X15 | 100 |
| 10X17 | 100 |
| 13X20 | 100 |
| 15X23 | 100 |
| 19X27 | 60 |
| 20X28 | 50 |
| 25X35 | 50 |
