Hydrocarbon delivery hoses

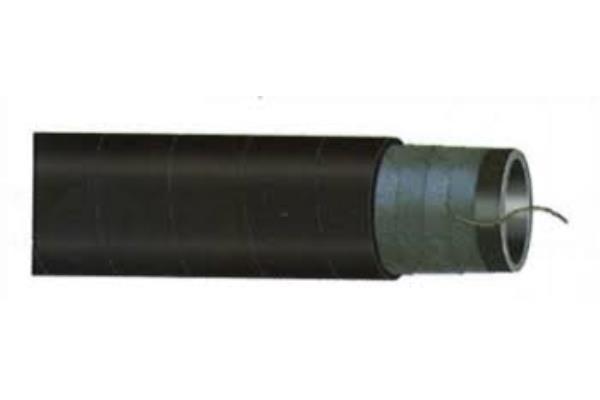

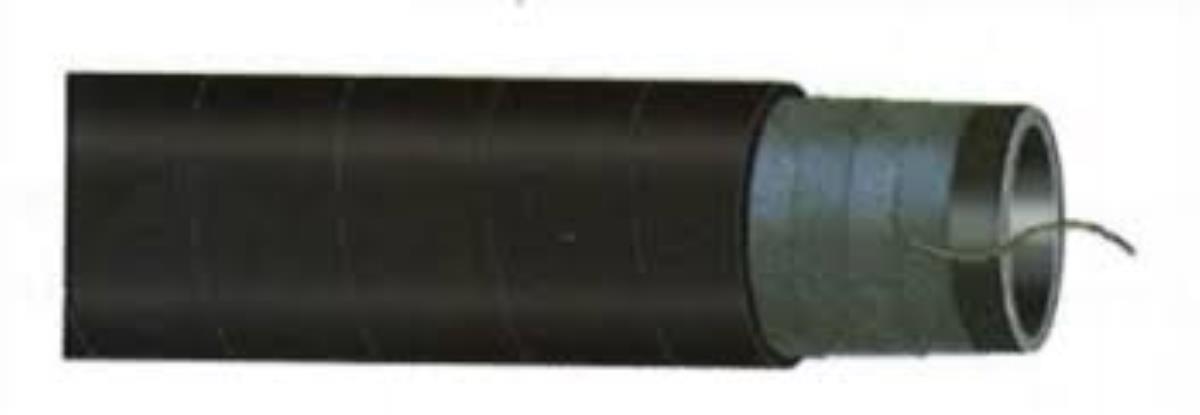

FUEL HOSE/16bar EN 12115

FUEL HOSE/16bar EN 12115
Download sheet in pdf format

Description and technical data

DELIVERY PIPE FOR FUEL AND MINERAL OILS - EN 12115
Application: Delivery of fuels and petroleum derivatives with aromatic content up to 50%
Inner tube: Black, smooth antistatic NBR1 rubber
Reinforcement: High tenacity synthetic fabrics, with 2 incorporated copper cords for grounding the pipe
Cover: Black, smooth, flame retardant and antistatic (R<10 6 Ohm/m), with CR rubber fabric impression, resistant to chemicals, ozone and atmospheric agents

Operating temperature: -30°C +80°C
Reference standards: EN 12115 / TRbF
Packaging: 40 or 61 meter rolls


Diameter
internal

Diameter
external

Weight

Pressure
Of
exercise

Pressure
Of
explosion

Radius
Of
curvature

mm

mm

kg/m

bar

bar

mm

19

31

0.60

16

64

125

25

37

0.89

16

64

150

32

44

1.00

16

64

175

38

51

1.35

16

64

225

51

67

2.00

16

64

275

63.5

80

2.50

16

64

300

76

92

2.85

16

64

350

102

122

4.15

16

64

450
