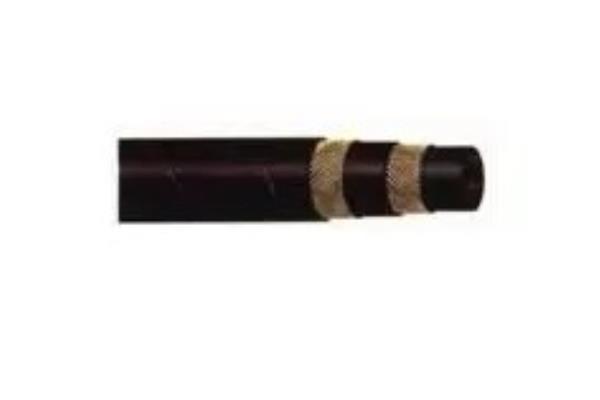

SAE J30R7 L/L BIOFUEL PIPE
ONLINE CATALOGUE › HOSES › Hydrocarbon delivery hoses
Download sheet in pdf format
Delivery hose for mineral oils, E5 and E10 petrol, diesel and BIO DIESEL fuels type B10, B20, B30, HVO
Maximum temperature 100°C.
Maximum temperature 100°C.
Inner tube: Black, smooth NBR rubber.
Cover: Black, smooth NBR rubber, resistant to temperature, oils and atmospheric agents.
Operating temperature -40°C +125°C
COMPLIANCE WITH SAE J30R7 STANDARDS
certification that guarantees excellent resistance to fuels with high ethane concentrations, biodiesel in extreme temperatures.
Low permeability tube (550 g/ m2 /day). Permeability test, 8 days in fuel C at room temperature.
reduces fuel vapor emissions, helping to comply with environmental regulations.
The high-quality materials used ensure long life with reliable performance.
Used in fuel supply systems in motor vehicles (cars, industrial vehicles, earth-moving machines, tractors, motorcycles.
certification that guarantees excellent resistance to fuels with high ethane concentrations, biodiesel in extreme temperatures.
Low permeability tube (550 g/ m2 /day). Permeability test, 8 days in fuel C at room temperature.
reduces fuel vapor emissions, helping to comply with environmental regulations.
The high-quality materials used ensure long life with reliable performance.
Used in fuel supply systems in motor vehicles (cars, industrial vehicles, earth-moving machines, tractors, motorcycles.
| Diameter internal | Diameter external | Weight | Pressure Of exercise | Pressure Of explosion | Radius Of curvature | rolls |
|---|---|---|---|---|---|---|
| mm | mm | kg/m | bar | bar | mm | m |
| 5 | 11 | 0.12 | 10 | 30 | 35 | 25 |
| 6 | 12.3 | 0.13 | 10 | 30 | 45 | 25 |
| 8 | 14.3 | 0.20 | 10 | 30 | 75 | 25 |
| 10 | 17.2 | 0.23 | 10 | 30 | 85 | 25 |
| 13 | 20.2 | 0.27 | 10 | 30 | 95 | 25 |
