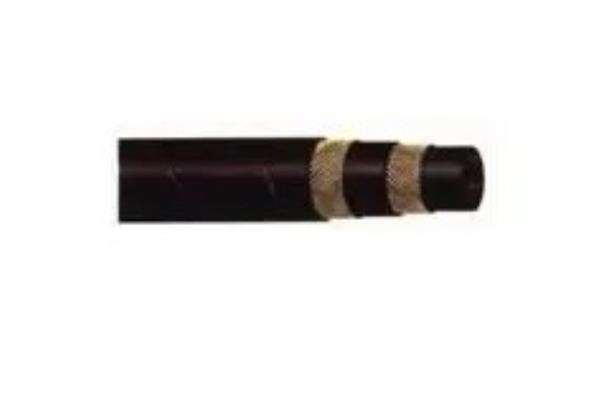

SAE J30R9 L/L BIOFUEL PIPE
ONLINE CATALOGUE › HOSES › Hydrocarbon delivery hoses
Download sheet in pdf format
Pipe suitable for fuel injection lines, diesel, biodiesel (B10, B20, B100, RME); petrol E10, E15, E85.
Operating temperature -40°C +135°C peaks 150°C
Operating temperature -40°C +135°C peaks 150°C
Underlayer: Black, smooth rubber Black FKM .
Aramid fiber braided reinforcement
Cover: Smooth black ECO rubber, resistant to temperature, oils and ozone
Cover: Smooth black ECO rubber, resistant to temperature, oils and ozone
COMPLIANCE with SAE J30R9 Standards, conductive tube according to EN ISO8031-DEC2009, R= 1MO/mAE
certification that guarantees excellent resistance to fuels with high ethane concentrations, biodiesel in extreme temperatures.
Low permeability tube (550 g/ m2 /day). Permeability test, 8 days in fuel C at room temperature.
reduces fuel vapor emissions, helping to comply with environmental regulations.
The high-quality materials used ensure long life with reliable performance.
Used in fuel supply systems in motor vehicles (cars, industrial vehicles, earth-moving machines, tractors, motorcycles.
Low permeability tube (550 g/ m2 /day). Permeability test, 8 days in fuel C at room temperature.
reduces fuel vapor emissions, helping to comply with environmental regulations.
The high-quality materials used ensure long life with reliable performance.
Used in fuel supply systems in motor vehicles (cars, industrial vehicles, earth-moving machines, tractors, motorcycles.
| Diameter internal | Diameter external | Weight | Pressure of work | Burst pressure | Radius of curvature | Rolls |
| mm | mm | kg/m | bar | bar | mm | m |
| 5 | 11 | 0.10 | 12.5 | 62 | 60 | 25 |
| 6 | 12 | 0.13 | 12.5 | 62 | 70 | 25 |
| 8 | 15 | 0.16 | 12.5 | 62 | 80 | 25 |
| 10 | 17.2 | 0.21 | 10 | 34 | 85 | 25 |
| 13 | 20.2 | 0.28 | 10 | 34 | 100 | 25 |
