ASPIROIL/10 HOSE
ONLINE CATALOGUE › HOSES › Hydrocarbon suction hoses
Download sheet in pdf format

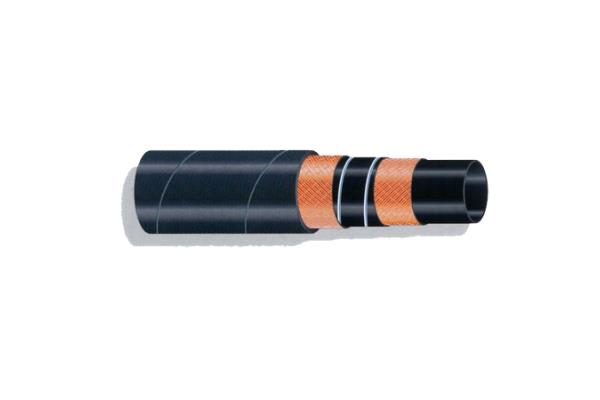

Hose for suction and delivery of fuels, oils and lubricants, diesel with aromatic content up to 50%. Smooth black NBR rubber tube, with textile reinforcement, steel spiral and incorporated copper cables for earthing.
Black NBR rubber cover with cloth finish, resistant to hydrocarbons, atmospheric agents and ozone.
Operating temperature: -30° +80° C
40-61 meter rolls
Operating pressure 10 bar, burst pressure 30 bar
Maximum depression value 0.9 bar
Also available in the version with conductive underlayer R<10 6 O/m
Black NBR rubber cover with cloth finish, resistant to hydrocarbons, atmospheric agents and ozone.
Operating temperature: -30° +80° C
40-61 meter rolls
Operating pressure 10 bar, burst pressure 30 bar
Maximum depression value 0.9 bar
Also available in the version with conductive underlayer R<10 6 O/m
| Code item | Dimension OR mm | radius Of curvature mm |
|---|---|---|
| 06GBAS0000020 T | 19x29 | 115 |
| 06GBAS0000025 T | 25x35 | 150 |
| 06GBAS0000030 T | 30x40 | 180 |
| 06GBAS0500032 T | 32x42 | 190 |
| 06GBAS0000035 T | 35x45 | 210 |
| 06GBAS0000038 T | 38x49 | 240 |
| 06GBAS0000040 T | 40x51 | 240 |
| 06GBAS0000042 T | 42x53 | 255 |
| 06GBAS0000045 T | 45x56 | 270 |
| 06GBAS0000050 T | 50x62 | 300 |
| 06GBAS0000060 T | 60x72 | 360 |
| 06GBAS0000063 T | 63x76 | 380 |
| 06GBAS0000070 T | 70x83 | 400 |
| 06GBAS0000075 T | 76x89 | 460 |
| 06GBAS0000080 T | 80x94 | 480 |
| 06GBAS0000090 T | 90x104 | 540 |
| 06GBAS0000100 T | 102x118 | 600 |
| 06GBAS0000100 T | 102x118 | 600 |
| 06GBAS0000120 T | 120x135 | 720 |
| 06GBAS0000127 T | 127x143 | 760 |
| 06GBAS0000152 T | 152x170 | 900 |
