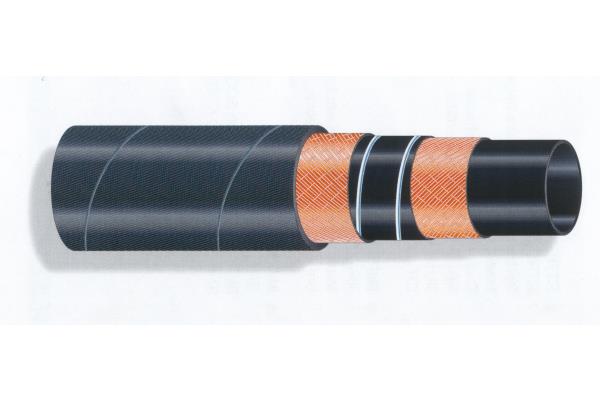

FLEXIBLE RUBBER HOSE FOR THE SUCTION AND DELIVERY TRANSFER OF HOT OIL AND LIQUID BITUMEN/ASPHALT.
The hose is made of FLUORINATED ELASTOMER (FKM) resistant to both temperature and hydrocarbons.
Standard smooth or corrugated version for large diameters.
Operating pressure 15 bar - burst safety coefficient 3 45 bar.
Vacuum resistance 0.90 bar
Operating temperature -30° +180°C
Diameters available from 50 to 203mm
Textile reinforcement inserted with incorporated steel spiral.
40 meter rolls
Standard dimensions
| diameter internal mm | Diameter external mm | Weight | Radius of curvature mm | Pressure of exercise Cafe |
| 50 | 68 | 2.60 | 260 | 15 |
| 76 | 95 | 3.30 | 450 | 15 |
| 90 | 109 | 4.00 | 540 | 15 |
| 102 | 122 | 4.50 | 610 | 15 |
| 127 | 147 | 6.80 | 760 | 15 |
