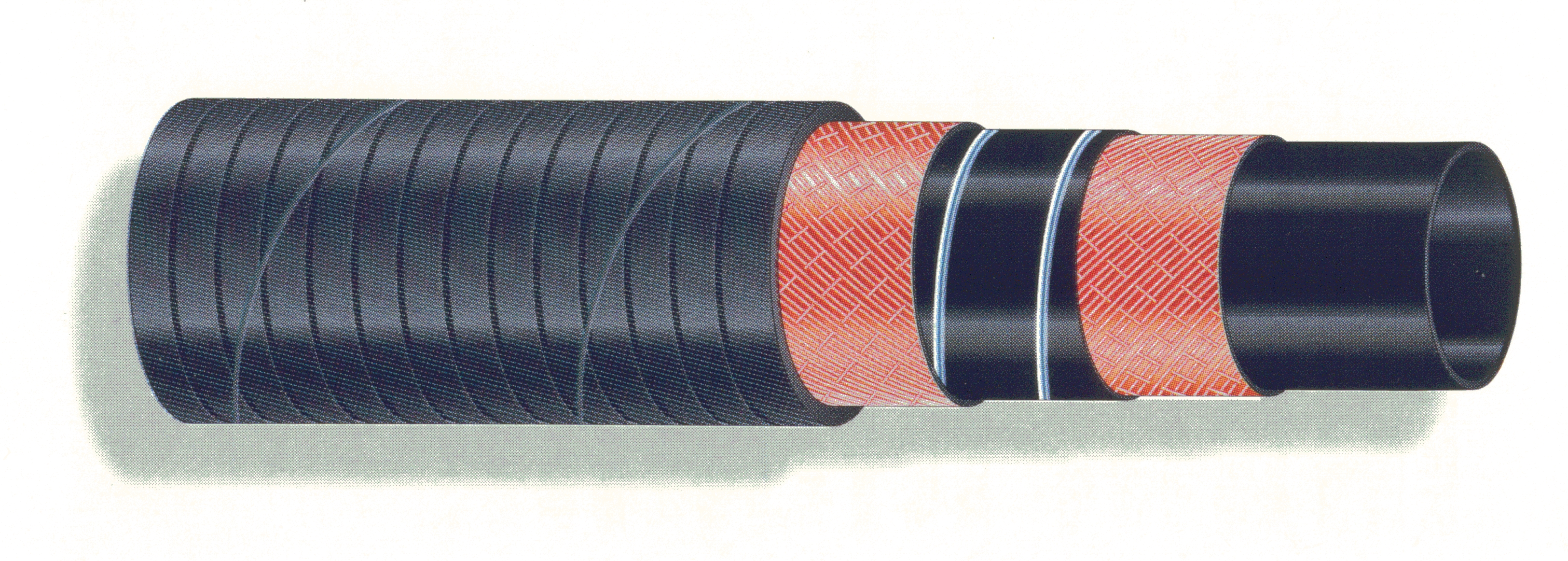

RIBBED ASPIROIL/10 HOSE
ONLINE CATALOGUE › HOSES › Hydrocarbon suction hoses
Download sheet in pdf format
Hose for suction and delivery of fuels, oils and lubricants, diesel with aromatic content up to 50%. Smooth black NBR rubber tube, with textile reinforcement, steel spiral and incorporated copper cables for earthing.
Designed to give maximum comfort of use for operators, thanks to its qualities of extreme flexibility and easy handling.
Black cover, corrugated with canvas impression. Antistatic rubber SBR/NBR/PVC resistant to abrasion, hydrocarbons, atmospheric agents and ozone.
Operating temperature: -30° +80° C
40 meter rolls
Operating pressure 10 bar, burst pressure 30 bar
Maximum depression value 0.9 bar
Designed to give maximum comfort of use for operators, thanks to its qualities of extreme flexibility and easy handling.
Black cover, corrugated with canvas impression. Antistatic rubber SBR/NBR/PVC resistant to abrasion, hydrocarbons, atmospheric agents and ozone.
Operating temperature: -30° +80° C
40 meter rolls
Operating pressure 10 bar, burst pressure 30 bar
Maximum depression value 0.9 bar
| Code item | Dimension OR mm | radius Of curvature mm |
|---|---|---|
| 06GBAS0000019GT | 19x28 | 70 |
| 06GBAS0000025GT | 25x34 | 85 |
| 06GBAS0000030GT | 30x40 | 100 |
| 06GBAS0500032GT | 32x42 | 105 |
| 06GBAS0000038GT | 38x48 | 130 |
| 06GBAS0000040GT | 40x50 | 135 |
| 06GBAS0000045 T | 45x55 | 150 |
| 06GBAS0000051GT | 50x61 | 165 |
| 06GBAS0000060GT | 60x70 | 200 |
| 06GBAS0000063GT | 63.5x73.5 | 220 |
| 06GBAS0000070GT | 70x82 | 240 |
| 06GBAS0000076GT | 76x90 | 250 |
| 06GBAS0000080GT | 80x94 | 250 |
| 06GBAS0000090GT | 90x105 | 270 |
| 06GBAS0000102GT | 102x116 | 390 |
