SAE J 517 HOSE: SAE 100 R4 FUEL

SAE J 517 HOSE: SAE 100 R4 FUEL
Download sheet in pdf format

Description and technical data

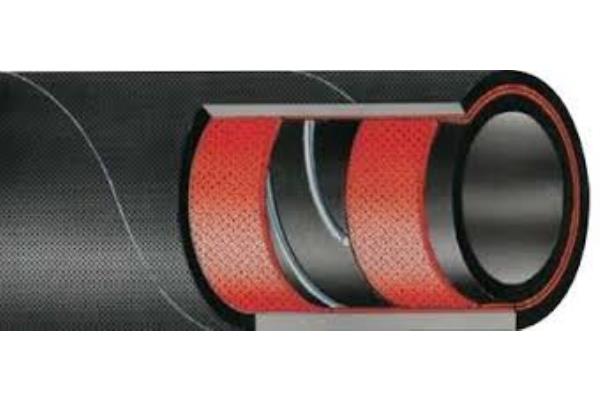

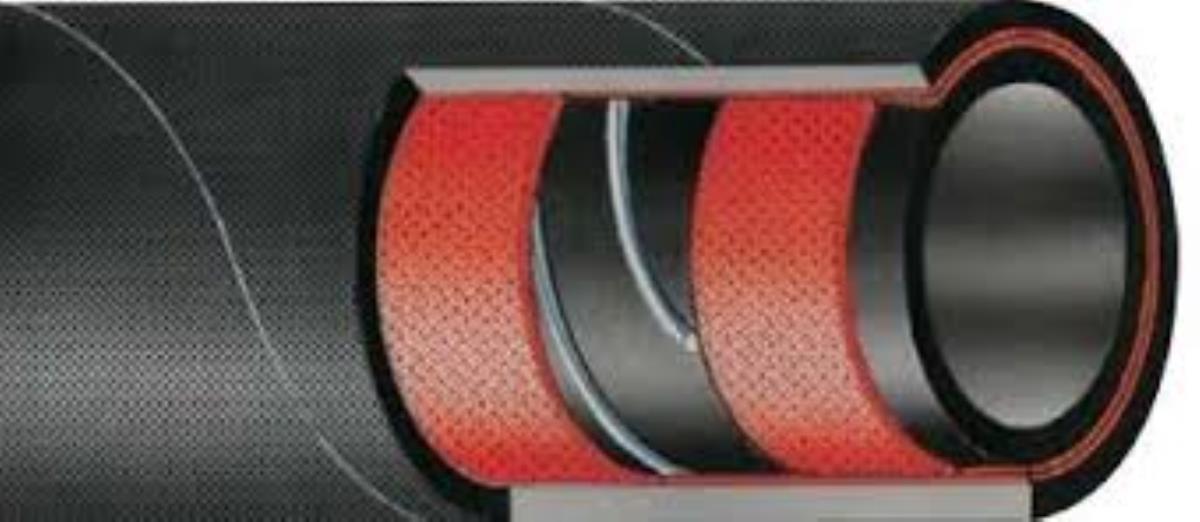

Hose suitable for the delivery of mineral oils, hydraulic fluids and fuels in hydraulic systems compliant with the SAE J 517: SAE/100 R4 standard.

Smooth black antistatic NBR rubber inner tube resistant to low aromatic hydrocarbons (<50%), with textile reinforcement and embedded steel spiral and copper cord for fastening.

Black CR/NBR rubber cover with canvas finish, resistant to hydrocarbons, atmospheric agents and abrasion.

Maximum depression: 0.80 bar
Operating temperature: -40° +100° C.
Rolls of 40 - 20 meters
Marking: red stripe - FUEL OIL - SD -SAE/100 R4 J517 WP PSI




Ři
mm		 Ře
mm		 Pressure
of work
bar

Pressure
of explosion
 bar

 Radius of
curvature
mm		 roll
m
13 23 10 30 50 40
16 26 10 30 50 40
19 29 21 84 50 40
22 32 10 30 70 40
25 35 17 68 70 40
30 41 10 30 90 40
32 43 14 56 90 40
35 46 10 30 100 40
38 49 10 30 100 40
10 52 10 30 120 40
42 54 10 30 120 40
45 57 10 30 120 40
48 60 10 30 130 40
51 63 10 30 135 40
55 67 10 30 180 40
60 74 10 30 340 40
63.5 77 10 30 340 20
70 84 10 30 420 20
76 90 10 30 460 20
80 96 10 30 480 20
90 106 10 30 520 20
102 118 10 30 610 20
120 139 10 30 810 20
127 146 10 30 900 20
