Nautical hoses - Off-shore umbilical hoses
NAUTILUS TUBE
Description and technical data

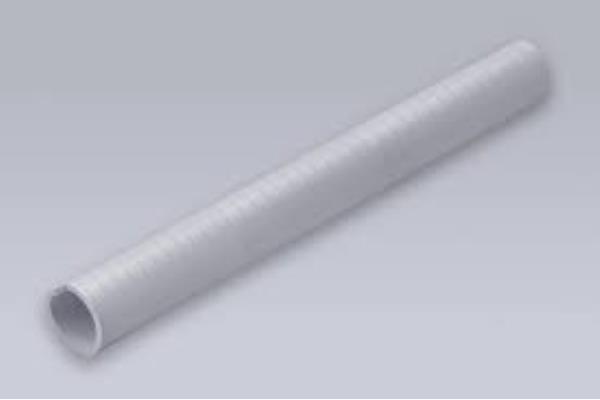

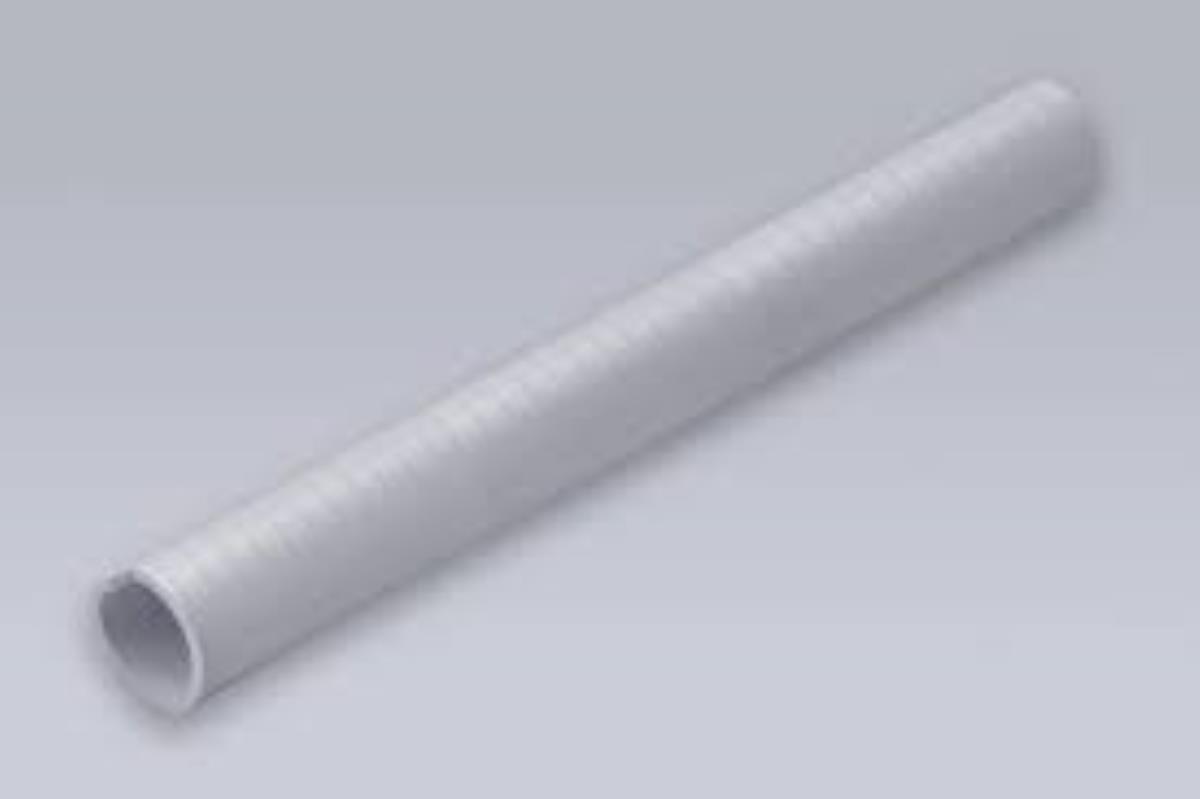

White PVC-P hose with shock-proof PVC-U reinforcement spiral, therefore very light and flexible.
Special anti-odor formulation. Completely smooth internal and external surface to facilitate flow optimization. Specialized use in the suction and transport of waste liquids, especially in the nautical sector, caravans, campers, prefabricated structures, containers, tents and camping.
DEPRESSION: 9 meters with water
PACKAGING: 30 meter rolls
White color
DIAMETER
internal
mm | THICKNESS
medium wall
mm | WEIGHT
g/m | PRESSURE
of exercise
Cafe | PRESSURE
of explosion
Cafe | RADIUS OF
CURVATURE
mm |
| 16 | 2.6 | 180 | 8.0 | 24 | 78 |
| 20 | 2.6 | 220 | 8.0 | 24 | 78 |
| 25 | 3.1 | 350 | 6.0 | 18 | 102 |
| 30 | 3.2 | 410 | 6.0 | 18 | 102 |
| 32 | 3.2 | 440 | 6.0 | 18 | 102 |
| 38 | 4.1 | 680 | 6.0 | 18 | 190 |
| 40 | 4.1 | 710 | 6.0 | 18 | 190 |
| 50 | 5.5 | 1240 | 6.0 | 18 | 190 |
| 51 | 5.5 | 1260 | 6.0 | 18 | 190 |
