TUBE SPIDER TOTAL PU ROBOT
ONLINE CATALOGUE › HOSES › Pipes for Automation and Robotics
Download sheet in pdf format
Tube entirely in polyurethane with inserted polyester fiber reinforcement
Particularly suitable for the industrial robotics sector.
Excellent resistance to abrasion, ozone, crushing, silicone-free.
Suitable for food contact according to DDC - compliant with FDA 21 CFR 177.2600 par."e"
Smooth surfaces
SHORE hardness A85
Operating temperatures: -20° +80° C

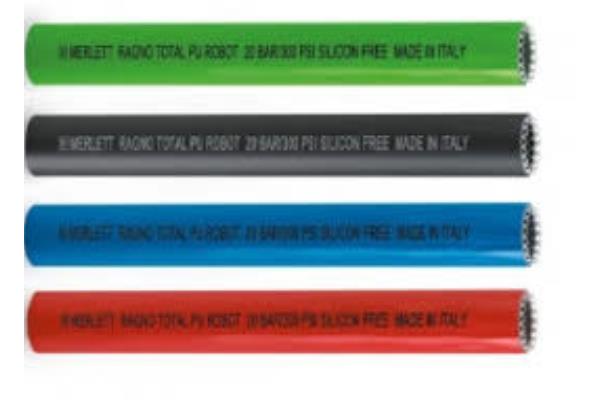

Available colours; GREEN, BLACK, BLUE, RED
Particularly suitable for the industrial robotics sector.
Excellent resistance to abrasion, ozone, crushing, silicone-free.
Suitable for food contact according to DDC - compliant with FDA 21 CFR 177.2600 par."e"
Smooth surfaces
SHORE hardness A85
Operating temperatures: -20° +80° C
Available colours; GREEN, BLACK, BLUE, RED
| Diameter internal inch | Diameter internal mm | Diameter external mm | Weight g/m | radius Of curvature mm | Pressure of removal bar 20°C | Pressure of exercise bar 20°C | Pressure of exercise bar 40°C | Pressure of exercise bar 60°C | rolls from m |
| 1/4" | 6.30 | 11.20 | 85 | 30 | 30 | 16 | 8 | 4 | 100 |
| 1/4" | 6.30 | 12.50 | 125 | 25 | 45 | 25 | 12 | 6 | 100 |
| 3/8" | 9.50 | 16 | 160 | 50 | 45 | 20 | 10 | 5 | 100 |
| 1/2" | 12.70 | 19 | 200 | 75 | 40 | 20 | 10 | 5 | 100 |
| 5/8" | 4.00pm | 23 | 250 | 120 | 40 | 17 | 8 | 4 | 50 |
| 3/4" | 7.00pm | 27 | 300 | 150 | 30 | 17 | 8 | 4 | 50 |
