PUR AS BLACK PERMANENT ANTISTATIC TUBE
ONLINE CATALOGUE › HOSES › PIPES suitable for ATEX environment
Download sheet in pdf format
Code: PUR-AS 0,7 NERO

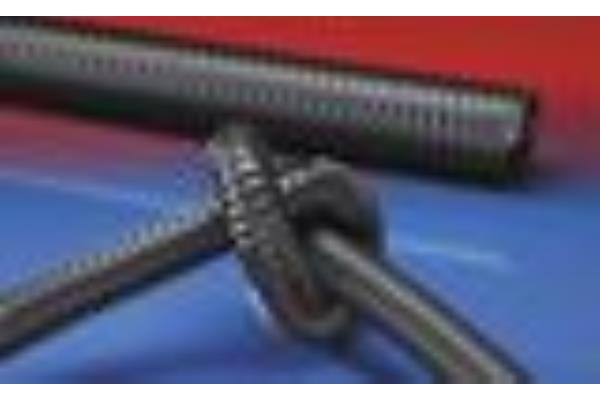

PUR AS BLACK PERMANENT ANTISTATIC TUBE - 0.7mm
Flexible hose for abrasive powder, bulk material, granules and gas
Cooling air: UV dryer, IR/infrared dryer
Extraction system, dust collection system, filtration system, oil mist extraction
potentially explosive area
Textile industry, fiber extraction: spinning machine, knitting machine, weaving machine
Clean room ventilation, semiconductor manufacturing machine
Surface treatment: sandblasting and metal grit recovery, for example in sandblasting booths, shipbuilding, paint stripping systems, industrial floor surface treatment systems
Heating pipe: outer pipe as a protective pipe.
Property
Medium heavy execution
highly abrasion resistant
good resistance to chemicals, industrial oils and hydrocarbons
excellent cold flexibility
Permanently antistatic wall: according to ISO 8031 volume resistance and surface resistance <10? O (according to TRGS 727 <2.5*108 O*m and NFPA 652 108-10? O)
according to ATEX 2014/34/EU (1999/92/EC) and German TRGS 727: pneumatic conveying of flammable dusts and bulk materials (Zone 20, 21, 22 indoors), extraction of combustible dusts (Zone 22 indoors)
according to ATEX 2014/34/EU (1999/92/EC) and German TRGS 727: for the transport of flammable liquids (within zone 0, 1, 2), for the transport of non-flammable liquids, for use in zone 1 and 2 (gases), for use in zone 0 (gases)
according to DIN 26057 type 2
RoHS compliant
REACH based on -> Technical information / technical / REACH
Temperature range: -40°C to 90°C briefly up to 125°C
Construction:
1. reinforced with harmonic steel wire embedded in the wall
2. Wall: Permanent antistatic polyurethane
3. Wall thickness about 0.7 mm
Delivery options:
Additional sizes and lengths available upon request
black (standard)
Special colors: fully colored
Customized. Product marking
ROLL PACKAGING: 10 meters
Overpressure and underpressure are recommended operating limits; products can be subjected to higher loads upon request. The bend radius is measured across the inside of the tube arc. We reserve the right to make technical changes. All values are determined at 20°C and are approximate.
PUR AS BLACK PERMANENT ANTISTATIC TUBE - 0.7mm
Flexible hose for abrasive powder, bulk material, granules and gas
Cooling air: UV dryer, IR/infrared dryer
Extraction system, dust collection system, filtration system, oil mist extraction
potentially explosive area
Textile industry, fiber extraction: spinning machine, knitting machine, weaving machine
Clean room ventilation, semiconductor manufacturing machine
Surface treatment: sandblasting and metal grit recovery, for example in sandblasting booths, shipbuilding, paint stripping systems, industrial floor surface treatment systems
Heating pipe: outer pipe as a protective pipe.
Property
Medium heavy execution
highly abrasion resistant
good resistance to chemicals, industrial oils and hydrocarbons
excellent cold flexibility
Permanently antistatic wall: according to ISO 8031 volume resistance and surface resistance <10? O (according to TRGS 727 <2.5*108 O*m and NFPA 652 108-10? O)
according to ATEX 2014/34/EU (1999/92/EC) and German TRGS 727: pneumatic conveying of flammable dusts and bulk materials (Zone 20, 21, 22 indoors), extraction of combustible dusts (Zone 22 indoors)
according to ATEX 2014/34/EU (1999/92/EC) and German TRGS 727: for the transport of flammable liquids (within zone 0, 1, 2), for the transport of non-flammable liquids, for use in zone 1 and 2 (gases), for use in zone 0 (gases)
according to DIN 26057 type 2
RoHS compliant
REACH based on -> Technical information / technical / REACH
Temperature range: -40°C to 90°C briefly up to 125°C
Construction:
1. reinforced with harmonic steel wire embedded in the wall
2. Wall: Permanent antistatic polyurethane
3. Wall thickness about 0.7 mm
Delivery options:
Additional sizes and lengths available upon request
black (standard)
Special colors: fully colored
Customized. Product marking
ROLL PACKAGING: 10 meters
DIAMETER | DIAMETER | PRESSURE | DEPRESSION | RADIUS OF | WEIGHT |
mm | mm | bar | bar | mm | Kg/m |
40 | 47 | 1,556 | 0.470 | 32 | 0.33 |
50 | 57 | 1,250 | 0.380 | 38 | 0.40 |
60 | 67 | 1,050 | 0.315 | 44 | 0.48 |
70 | 77 | 0.900 | 0.185 | 50 | 0.56 |
76 | 82 | 0.840 | 0.175 | 53 | 0.59 |
80 | 87 | 0.790 | 0.160 | 56 | 0.64 |
102 | 107 | 0.635 | 0.135 | 68 | 0.80 |
120 | 127 | 0.530 | 0.115 | 80 | 0.95 |
127 | 132 | 0.510 | 0.110 | 83 | 0.98 |
140 | 147 | 0.455 | 0.095 | 92 | 1.09 |
152 | 157 | 0.425 | 0.075 | 98 | 1.40 |
160 | 167 | 0.400 | 0.070 | 104 | 1.50 |
203 | 207 | 0.320 | 0.055 | 128 | 1.86 |
250 | 257 | 0.255 | 0.045 | 158 | 2.31 |
Overpressure and underpressure are recommended operating limits; products can be subjected to higher loads upon request. The bend radius is measured across the inside of the tube arc. We reserve the right to make technical changes. All values are determined at 20°C and are approximate.
