DOUBLE-LAYER FIREPROOF NON-SPARKING POLYURETHANE HOSE


Download sheet in pdf format

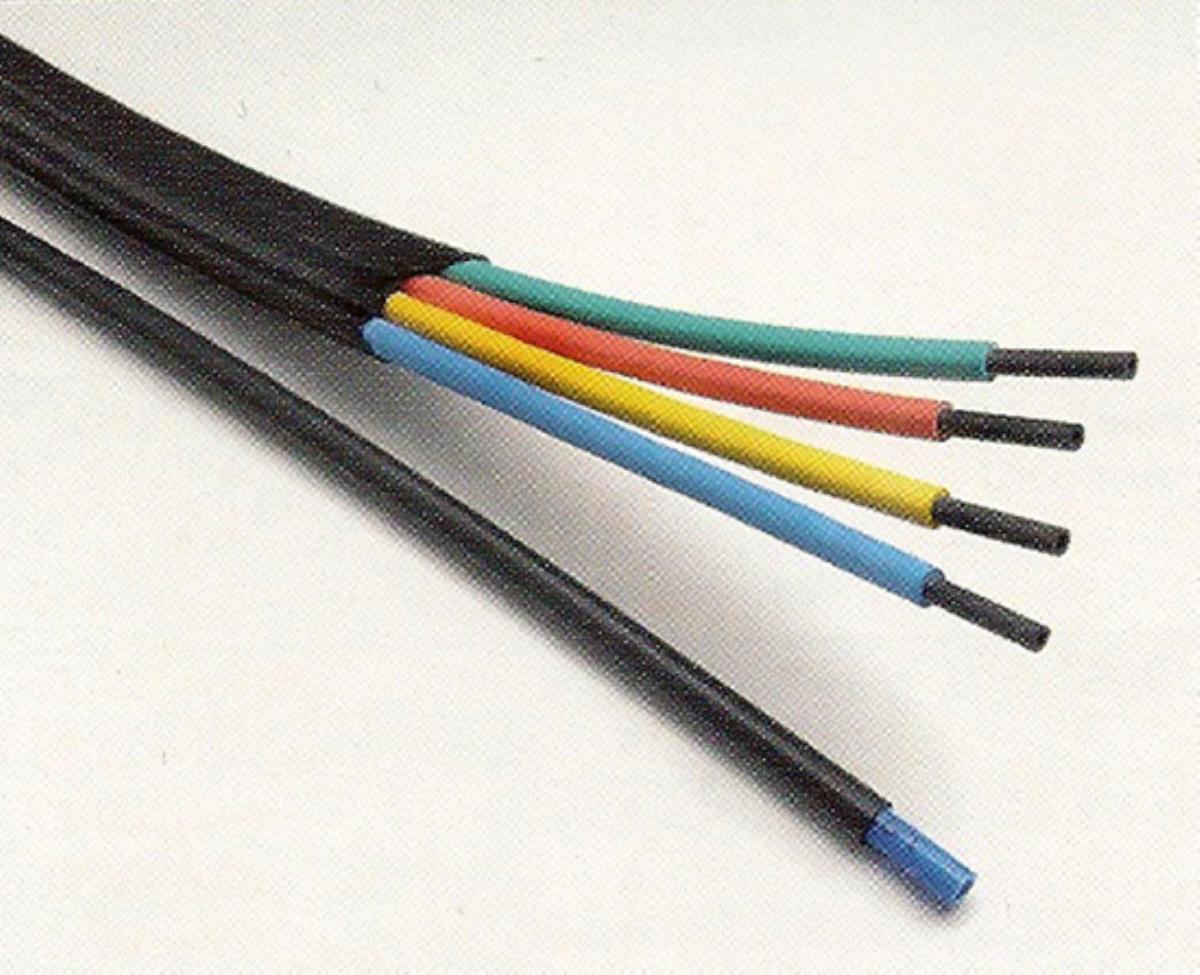

Plasticized PA 12 PHL tube, stabilized to light and heat, covered by an external layer of self-extinguishing UL94 V2 ether-based polyurethane which ensures protection from sparks and welding spatter.
The external protective sheath has been designed to be easily removed with the appropriate tool, for easy installation with quick couplings.
Special caps are then molded with the same material as the sheath to protect the exposed part of the inner tube and the fitting.

Recommended fittings: all types of pneumatic fittings: quick, semi-quick, push-on, bicone.

Standard lengths: 25-50-100 m

Standards and declarations: DIN 73378 - DIN 74324 - UL94 V2

Operating temperatures: from -40°C to 80°C

Burst pressure safety factor: 3:1

CODE
Pipe diameters

mm
Weight

g/m
Radius of
curvature
mm
Pressure
of exercise
bar
diameter
with sheath
mm
04PA12DS020406
2x4
 31
15
44
6
04PA12DS040608
4x6
 46
30
26
8
04PA12DS060810
6x8
 68
50
19
10
04PA12DS071012
7.5x10
80
60
19
12
04PA12DS091214
9x12
100
75
19
14
