TRIPLE LAYER FIREPROOF NON-SPARKING POLYURETHANE HOSE



Download sheet in pdf format

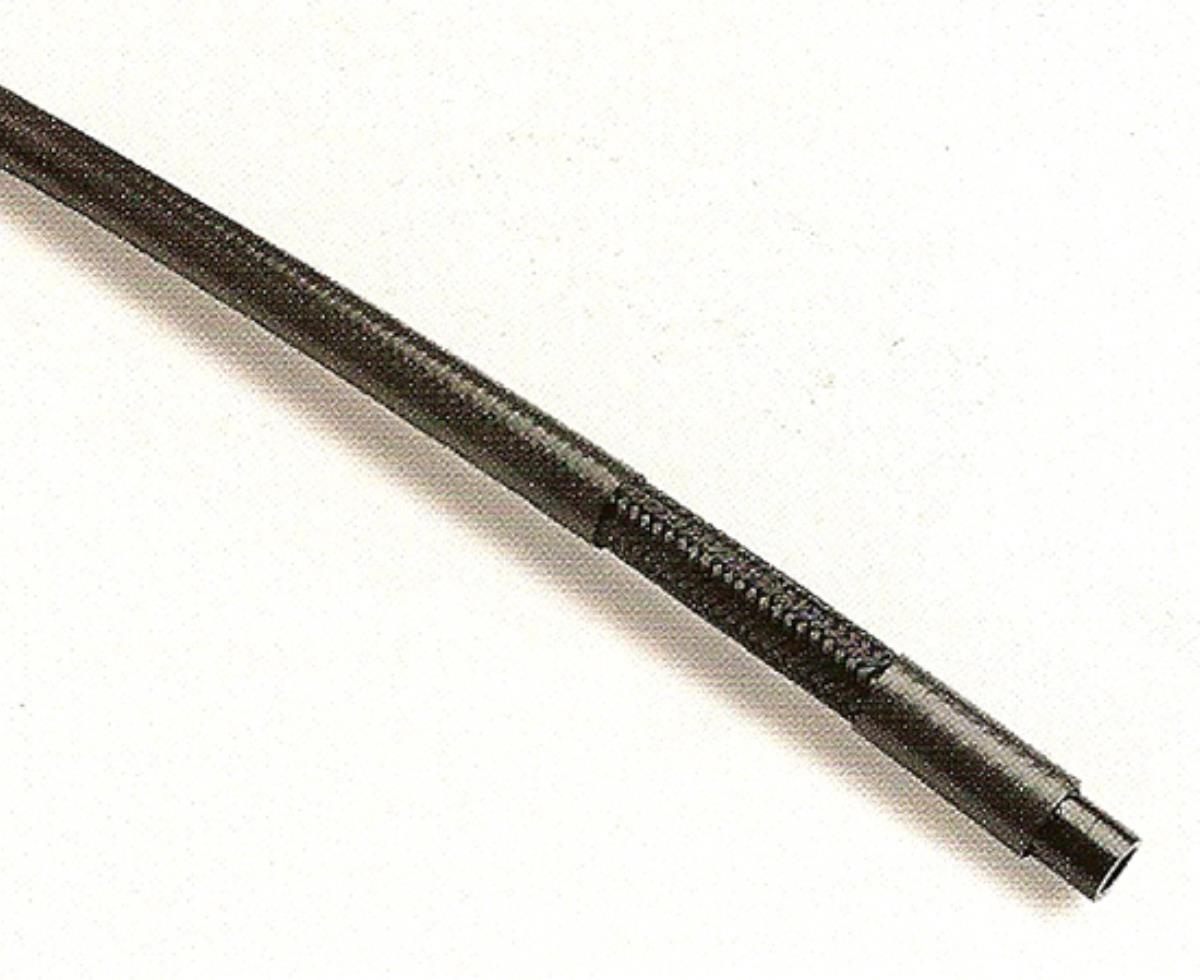

Triple-layer, flexible, spark-proof linear hose made of plasticized Polyamide 12 PHL, stabilized against light and heat. Internally reinforced with a tightly woven PBT braid. Externally, with an additional layer of anti-abrasive 85 shA polyurethane, self-extinguishing to UL94 V0 standards, suitable for improving protection against sparks and welding spatter. The anti-abrasive outer sheath (64 shore D hardness) can be easily removed with a special tool because it is not glued, facilitating assembly operations. Hose suitable for use with quick-connect fittings.
Black color, 100 meter rolls

Diameter
tube
mm
Weight

gr/m
Radius of curvature
mm
Operating pressure
Bar
2.5x4 33.8 15 30
4x6 52.2 30 26
6x8 68.6 50 19
5x10 91.4 60 19
9x12 117.1 75 19
