Self-extinguishing SINGLE-LAYER SPARK-PROOF POLYURETHANE HOSE
ONLINE CATALOGUE › HOSES › Hoses for Pneumatic Applications › POLYURETHANE - ELASTOLLAN - EXTRAFLEX HOSES
Download sheet in pdf format

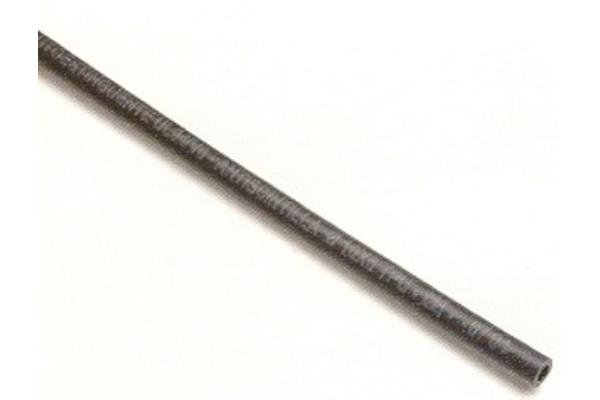

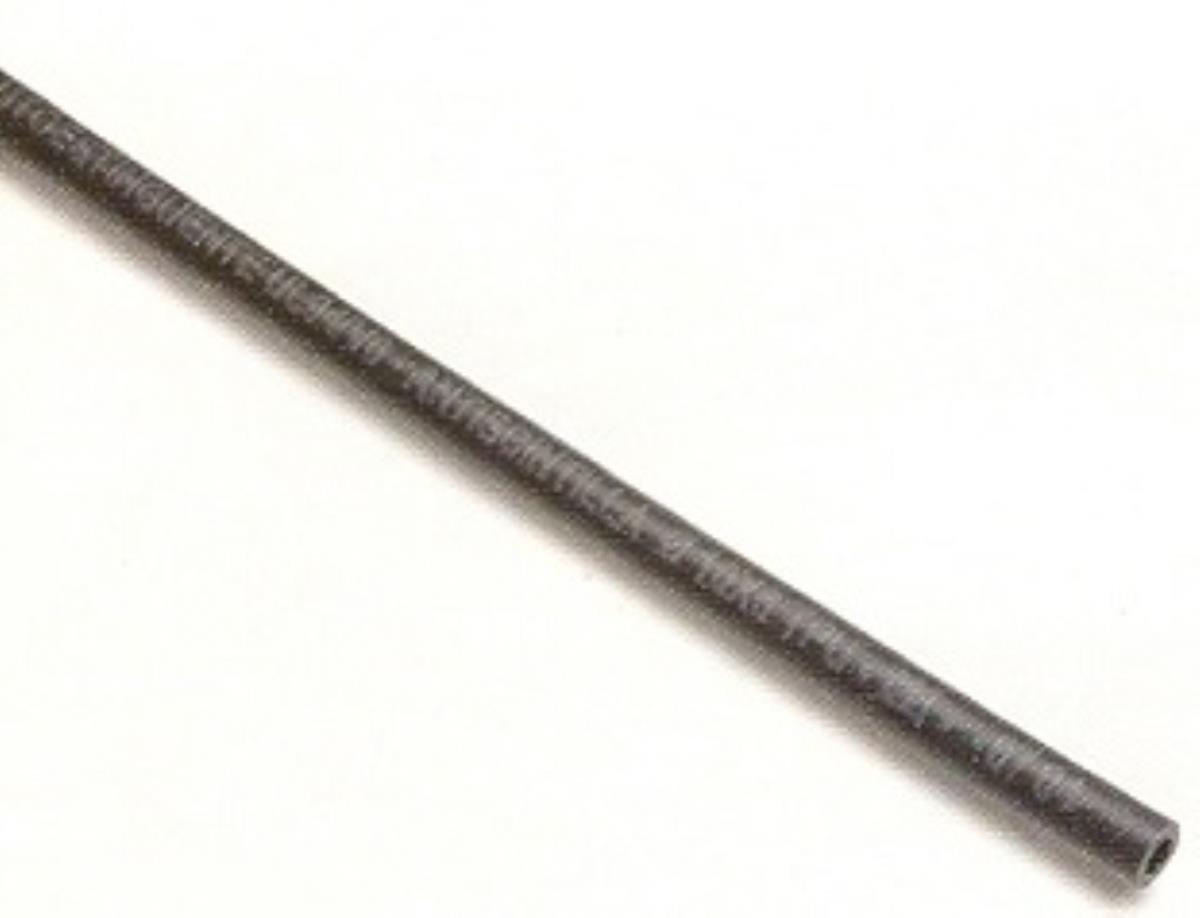

Ether-based SINGLE-LAYER NON-SPARKING POLYURETHANE tube
Self-extinguishing according to UL94V2 standards.
Hardness 58 shD
Black color, other colors on request.
Excellent flexibility and abrasion resistance,
suitable for the passage of fluids in refrigeration circuits and machines
for welding and welding robots.
lengths 50 - 100 meters
Suitable for use with quick couplings.
Self-extinguishing according to UL94V2 standards.
Hardness 58 shD
Black color, other colors on request.
Excellent flexibility and abrasion resistance,
suitable for the passage of fluids in refrigeration circuits and machines
for welding and welding robots.
lengths 50 - 100 meters
Suitable for use with quick couplings.
Pipe diameters mm | Weight gr | Radius of curvature mm | Operating pressure Bar |
|---|---|---|---|
2x4 | 12.5 | 10 | 22 |
2.5x6 | 30.2 | 10 | 27 |
3.5x6 | 24.1 | 15 | 17 |
4.5x8 | 44.5 | 20 | 17 |
5.5x8 | 34.3 | 30 | 12 |
6x10 | 65.1 | 25 | 16 |
7.5x10 | 44.5 | 45 | 9 |
8x12 | 81.3 | 40 | 13 |
