Flexible hoses for liquid suction for industrial, agricultural and sewage disposal

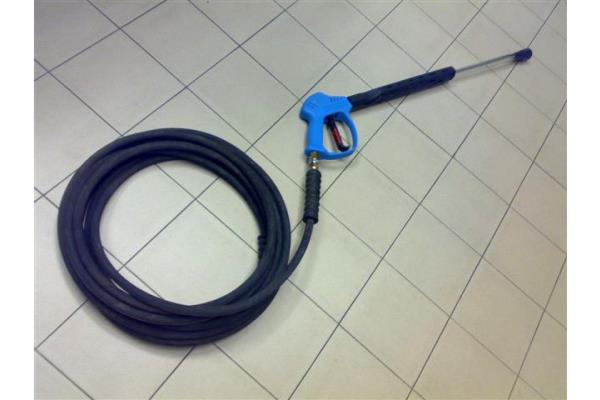

HOSE FOR PRESSURE WASHERS

Description and technical data

Flexible rubber hose with double metal braid incorporated for reinforcement.
Smooth internal surface and external canvas impression, temperature resistant rubber underlayer. Micro-perforated synthetic rubber cover resistant to atmospheric agents and abrasion, black or stain-resistant blue on request.
Supplied with pre-assembled fittings by pressing, with anti-heat rubber sleeves at the end.
Usage: Passage of hydraulic, mineral and biological oils, especially used for water or water-emulsified oil mixtures.
Standard lengths available: 10 – 15 – 20 metres.
Operating temperature: -10° +155° C.

Dimension Ø mm	Bar working pressure	Burst pressure Bar	Curvature radius mm	Weight Kg/m
6 - 1/4"	400	1600	75	0.29
8 - 5/16"	400	1600	85	0.35
10 - 3/8"	400	1600	90	0.46
12 - 1/2"	300	1200	130	0.51

HOSE FOR PRESSURE WASHERS

Description and technical data

Related products

AUTOMATIC WALL MOUNTED HOSE REEL

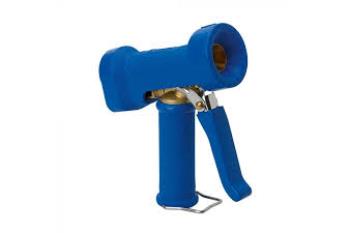

BRASS DINGA WASHING GUN
