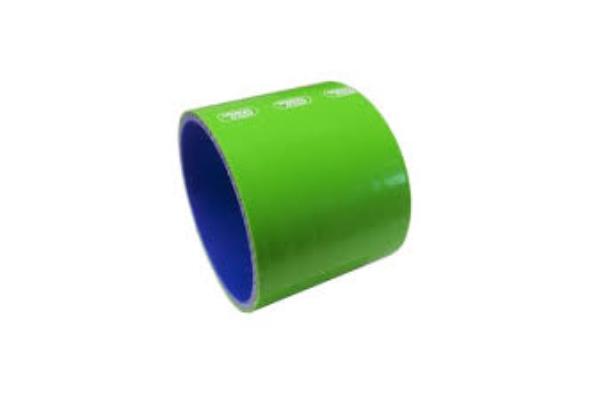

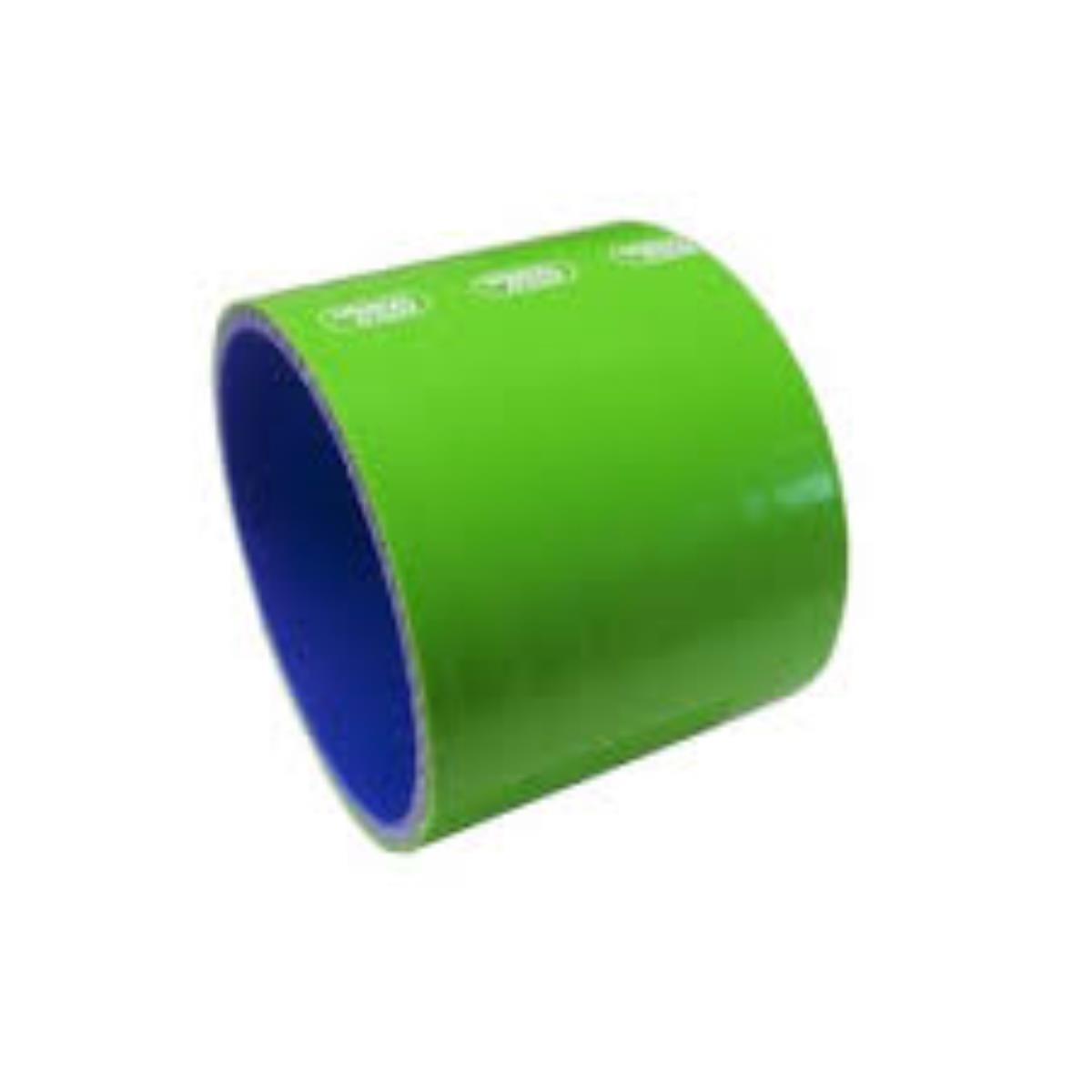

SILICONE HOSE VMQ+FKM 230 C green
ONLINE CATALOGUE › HOSES › Silicone rubber hoses and sleeves
Download sheet in pdf format
Code: 230°
Silicone hoses in VMQ (Vinyl Methyl Quality) with high temperature resistant aramid fibre textile reinforcements and fluorinated elastomer (FKM) inner layer.
APPLICATIONS
Connection between turbine and intercooler on cars, trucks, industrial vehicles and generators, for the passage of petrol, oils and chemical products (solvents).
Operating temperatures: -30° up to 230°C
ISO 1307 reference standards for dimensional tolerances WALL +1/-0,50mm
Standard lengths 1000mm
Color Green (RAL6038)
Shore A hardness 65-75
Silicone hoses in VMQ (Vinyl Methyl Quality) with high temperature resistant aramid fibre textile reinforcements and fluorinated elastomer (FKM) inner layer.
APPLICATIONS
Connection between turbine and intercooler on cars, trucks, industrial vehicles and generators, for the passage of petrol, oils and chemical products (solvents).
Operating temperatures: -30° up to 230°C
ISO 1307 reference standards for dimensional tolerances WALL +1/-0,50mm
Standard lengths 1000mm
Color Green (RAL6038)
Shore A hardness 65-75
| Internal diameter mm | Wall thickness mm | Number of Polyester Reinforcements | Burst pressure (bar) |
| 6.5 | 4 | 3 | 32.5 |
| 8 | 4 | 3 | 32.5 |
| 9.5 | 4 | 3 | 32.5 |
| 11 | 4 | 3 | 27 |
| 13 | 4 | 3 | 27 |
| 16 | 4 | 3 | 27 |
| 19 | 4 | 3 | 19.3 |
| 22 | 4 | 3 | 19.3 |
| 25 | 4 | 3 | 19.3 |
| 28 | 4.5 | 3 | 19.3 |
| 30 | 4.5 | 3 | 13.1 |
| 32 | 4.5 | 3 | 13.1 |
| 35 | 4.5 | 3 | 13.1 |
| 38 | 4.5 | 3 | 15.4 |
| 40 | 4.5 | 3 | 15.4 |
| 45 | 4.5 | 3 | 12.6 |
| 48 | 4.5 | 3 | 12.6 |
| 51 | 5 | 4 | 12.6 |
| 54 | 5 | 4 | 12.6 |
| 57 | 5 | 4 | 13.4 |
| 60 | 5 | 4 | 13.4 |
| 63 | 5 | 4 | 13.4 |
| 65 | 5 | 4 | 13.4 |
| 68 | 5 | 4 | 8 |
| 70 | 5 | 4 | 8 |
| 76 | 5 | 4 | 8 |
| 80 | 5 | 4 | 8 |
| 83 | 5 | 4 | 5.50 |
| 90 | 5 | 4 | 5.50 |
| 102 | 5 | 4 | 5 |
