FLEX HOSE 300 Self-extinguishing
ONLINE CATALOGUE › HOSES › Specific flexible hoses for engine test rooms
Download sheet in pdf format

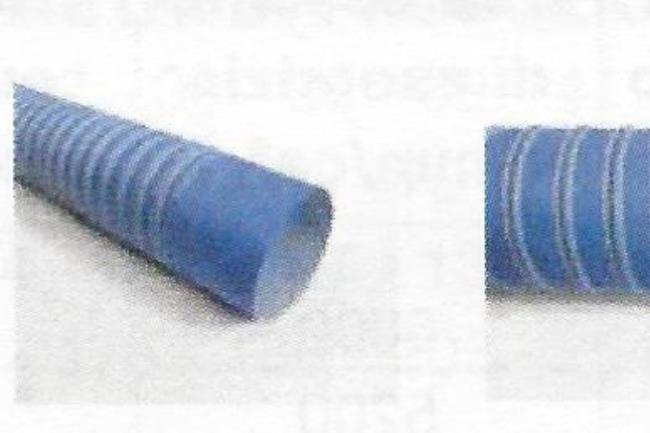

Flexible hose made of self-extinguishing silicone-coated fiberglass fabric, reinforced with an internal spiral of harmonic steel wire and external fiberglass stitching. Extremely flexible, lightweight, and with high axial compressibility of approximately 30%.

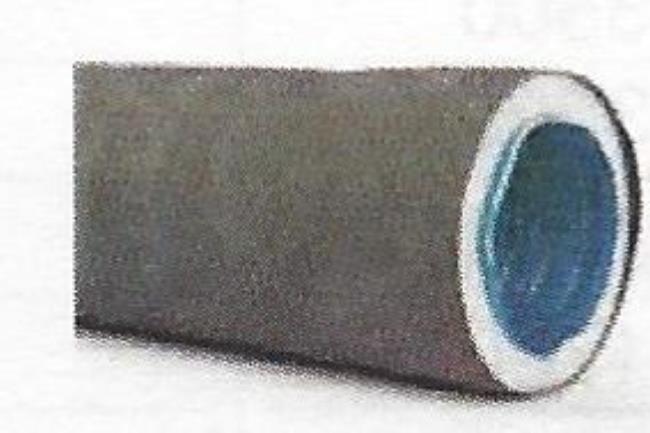

BLUE color (insulated version shown)
Suitable for joining high-temperature gas ducts, engine smoke extraction, electronic unit cooling, welding systems, vehicle cabin heating systems.
Operating temperature: -60° (-73°F) +270° (+520°F)
can tolerate up to 300° (572°F) for short periods of time
Maximum pressure: approximately 3 times the operating pressure
Standard length 4 meters
REACTION TO FIRE: EN 4545-2:2013 - UNI CEI 11170 - 3/2005
On request: end sleeves, insulation with expanded MELAMINE and black NEOPRENE rubber vapour barrier
Data refers to T=20°C, ambient temperature. Control pressure equal to the operating pressure times 1.5. Maximum pressure equal to the operating pressure times 3.
BLUE color (insulated version shown)
Suitable for joining high-temperature gas ducts, engine smoke extraction, electronic unit cooling, welding systems, vehicle cabin heating systems.
Operating temperature: -60° (-73°F) +270° (+520°F)
can tolerate up to 300° (572°F) for short periods of time
Maximum pressure: approximately 3 times the operating pressure
Standard length 4 meters
REACTION TO FIRE: EN 4545-2:2013 - UNI CEI 11170 - 3/2005
On request: end sleeves, insulation with expanded MELAMINE and black NEOPRENE rubber vapour barrier
| Code item | Dimensions Ø mm | Operating pressure bar | Vacuum-packed bar | Radius of curvature m | Weight gr/m |
|---|---|---|---|---|---|
| 11SV300ATS00025 | 25 | 1.6 | 5100 | 8 | 120 |
| 11SV300ATS00038 | 38 | 1.3 | 5000 | 12 | 168 |
| 11SV300ATS00051 | 51 | 1.2 | 4300 | 16 | 250 |
| 11SV300ATS00063 | 63 | 1.1 | 4000 | 20 | 300 |
| 11SV300ATS00076 | 76 | 1.1 | 3400 | 25 | 410 |
| 11SV300ATS00089 | 89 | 1.0 | 3000 | 29 | 490 |
| 11SV300ATS00095 | 95 | 0.9 | 2800 | 33 | 550 |
| 11SV300ATS00102 | 102 | 0.9 | 2600 | 35 | 650 |
| 11SV300ATS00114 | 114 | 0.9 | 2200 | 40 | 720 |
| 11SV300ATS00127 | 127 | 0.8 | 1700 | 46 | 800 |
| 11SV300ATS00152 | 152 | 0.7 | 1400 | 50 | 980 |
| 11SV300ATS00180 | 178 | 0.6 | 1100 | 60 | 1190 |
| 11SV300ATS00203 | 203 | 0.5 | 700 | 68 | 1330 |
| 11SV300ATS00254 | 254 | 0.4 | 450 | 100 | 1650 |
| 11SV300ATS00305 | 305 | 0.1 | 300 | 116 | 2000 |
