FLEX HOSE HT 650
ONLINE CATALOGUE › HOSES › Specific flexible hoses for engine test rooms
Download sheet in pdf format

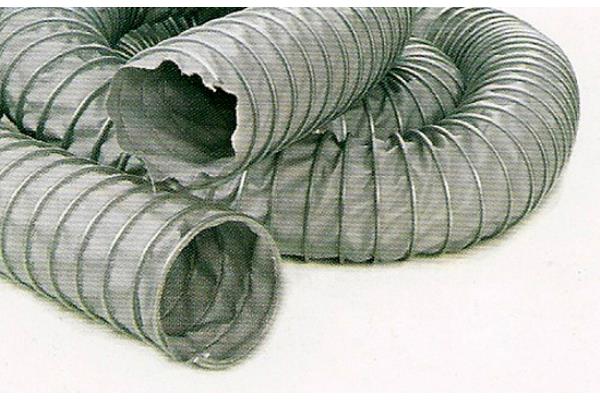

Lightweight flexible hose made with a double layer of asbestos-free fabric,
coated with POLYURETHANE reinforced by intertwined stainless steel wires and a spiral
galvanized exterior which gives considerable external protection against abrasion.
Flame resistant, non-toxic. Flexible and axially compressible.
Hardly flammable, resistant to tearing.
Gray colour. Excellent resistance to high temperatures: - 20° +650° C (+750° maximum peak).
Lengths on request starting from 2 meters up to a maximum of 15 meters with any
smooth sleeves at the ends.
Use:
gas suction from engine test benches for the automotive industry and industrial and special vehicles.
Suction and conveyance of high temperature air in industrial furnaces, steel industry,
engine test rooms.
coated with POLYURETHANE reinforced by intertwined stainless steel wires and a spiral
galvanized exterior which gives considerable external protection against abrasion.
Flame resistant, non-toxic. Flexible and axially compressible.
Hardly flammable, resistant to tearing.
Gray colour. Excellent resistance to high temperatures: - 20° +650° C (+750° maximum peak).
Lengths on request starting from 2 meters up to a maximum of 15 meters with any
smooth sleeves at the ends.
Use:
gas suction from engine test benches for the automotive industry and industrial and special vehicles.
Suction and conveyance of high temperature air in industrial furnaces, steel industry,
engine test rooms.
Dimensions Ø mm | Depression bar | Curvature radius mm | Weight Kg/m |
|---|---|---|---|
60 | 0.320 | 36 | 1.35 |
| 75 | 0.255 | 45 | 1.65 |
| 80 | 0.228 | 48 | 1.80 |
| 100 | 0.168 | 60 | 1.80 |
| 120 | 0.118 | 72 | 2.00 |
| 125 | 0.105 | 75 | 2.10 |
| 150 | 0.076 | 90 | 2.20 |
| 160 | 0.067 | 96 | 2.40 |
| 180 | 0.052 | 108 | 2.80 |
| 200 | 0.042 | 120 | 3.00 |
| 250 | 0.029 | 175 | 3.55 |
| 300 | 0.019 | 210 | 4.60 |
| 350 | 0.015 | 245 | 5.00 |
| 400 | 0.011 | 280 | 5.90 |
| 500 | 0.007 | 400 | 7.40 |
