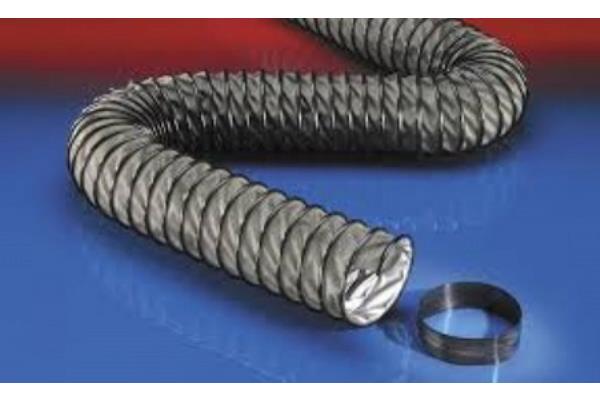

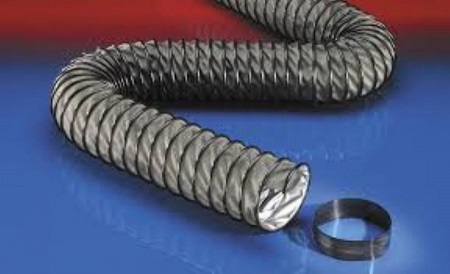

GARAGEFLEX 200 ARAMID HOSE
ONLINE CATALOGUE › HOSES › Specific flexible hoses for engine test rooms
Download sheet in pdf format
APPLICATIONS
- Hose for hot gases
- Engine exhaust gas extraction: exhaust gas hose reel, suction channel, top exhaust system, floor extraction system
- Engine test bench, exhaust gas analysis
PROPERTY
- external protection profile made of elastic material
- Scrub protection from the external clamping profile
- Tight clamping of the wall in the clamping profile
- highly flexible + compressible
- vibration proof
- excellent heat resistance
- good chemical resistance
- Hardly flammable
- Aramid wall: fire protection class "M1" according to UNE 23727-90
- Compliant with RoHS regulations
- REACH based on technical information
TEMPERATURE RANGE
- Exhaust gas temperatures up to 300°C with correct use of exhaust funnels and a sufficient amount of fresh air (approx. 50%)
CONSTRUCTION
- CP design
- Clamping profile support spiral: galvanized steel
- Wall: Specially coated high temperature fabric
- Shockproof and anti-crushing protection firmly made of elastic plastic for high temperatures
DELIVERY VARIANTS
- Further dimensions and lengths available on request
- Special colors: colored spiral
- Stainless steel clamping profile.
DIAMETERINTERNAL | DIAMETEREXTERNAL | OVERPRESSURE | EMPTY | RADIUS OF CURVATURE | WEIGHT | PACKAGING |
inch/mm | mm | Cafe | Cafe | mm | Kg/m | m |
3"/75-76 | 89.00 | 0.42 | 0.23 | 48.00 | 0.87 | 10 |
-/80 | 94.00 | 0.40 | 0.20 | 49.00 | 0.92 | 10 |
4"/100-102 | 114.00 | 0.25 | 0.12 | 58.00 | 0.88 | 10 |
5"/125-127 | 139.00 | 0.22 | 0.09 | 70.00 | 1.09 | 10 |
6"/150-152 | 164.00 | 0.14 | 0.05 | 81.00 | 1.05 | 10 |
8"/200-203 | 214.00 | 0.12 | 0.03 | 103.00 | 1.29 | 10 |
- /250 | 264.00 | 0.08 | 0.03 | 125.00 | 1.64 | 10 |
