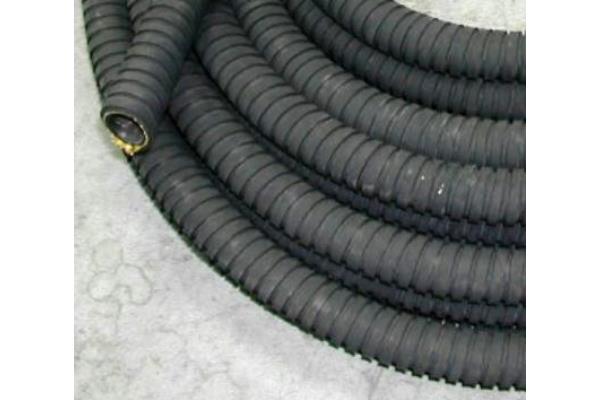

MULTIPURPOSE RIBBED RUBBER HOSE
ONLINE CATALOGUE › HOSES › Specific flexible hoses for engine test rooms
Download sheet in pdf format
Pipe passing hot water mixed with antifreeze liquids, in car radiators, engine cooling systems, heating circuits in car cabins, due to its flexibility it is particularly suitable for the engine compartment.
Appearance: smooth black exterior with canvas impression, smooth black interior with corrugated exterior, black colour.
Structure: heat-resistant EPDM synthetic rubber, inserted metal spiral, synthetic textile reinforcements, EPDM cover with grooves for extreme flexibility, resistant to aging and atmospheric agents.
Compliant with ISO 1307/1992.
Operating temperature: -40° +120° C.
Maximum operating pressure 5 bar, safety coefficient 3.
Maximum depression 0.80 bar 40 meter rolls.
On request execution of sleeves at the ends.
Appearance: smooth black exterior with canvas impression, smooth black interior with corrugated exterior, black colour.
Structure: heat-resistant EPDM synthetic rubber, inserted metal spiral, synthetic textile reinforcements, EPDM cover with grooves for extreme flexibility, resistant to aging and atmospheric agents.
Compliant with ISO 1307/1992.
Operating temperature: -40° +120° C.
Maximum operating pressure 5 bar, safety coefficient 3.
Maximum depression 0.80 bar 40 meter rolls.
On request execution of sleeves at the ends.
| Item number | Dimensions Ø mm | Curvature radius mm |
|---|---|---|
| 09GGREMU015/023 | 15x23 | 55 |
| 09GGREMU018/028 | 19x27 | 70 |
| 09GGREMU020/030 | 20x28 | 70 |
| 09GGREMU022/032 | 22x30 | 75 |
| 09GGREMU025/035 | 25x33 | 85 |
| 09GGREMU028/038 | 28x36 | 95 |
| 09GGREMU030/040 | 30X38 | 100 |
| 09GGREMU032/042 | 32x40 | 105 |
| 09GGREMU035/045 | 35x43 | 115 |
| 09GGREMU038/048 | 38x47 | 130 |
| 09GGREMU040/050 | 40x49 | 135 |
| 09GGREMU045/055 | 45x54 | 150 |
| 09GGREMU050/060 | 50x60 | 165 |
| 09GGREMU060/070 | 60x70 | 200 |
| 09GGREMU63.5/73.5 | 63.5x73.5 | 220 |
| 09GGREMU076/086 | 76x86 | 250 |
| 09GGREMU080/090 | 80x92 | 270 |
| 09GGREMU090/100 | 90x102 | 300 |
| 09GGREMU102/113 | 102x117 | 400 |
