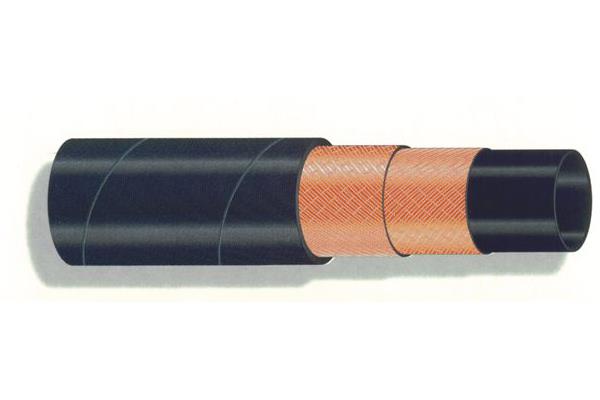

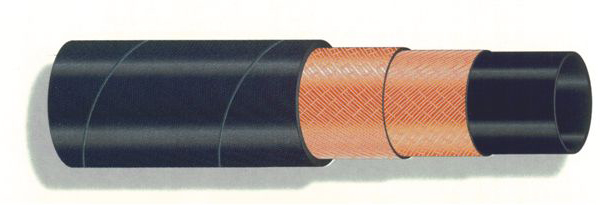

RADIATOR RUBBER HOSE
ONLINE CATALOGUE › HOSES › Specific flexible hoses for engine test rooms
Download sheet in pdf format
Pipe passing hot water mixed with antifreeze liquids, in car radiators, engine cooling systems, heating circuits of car cabins.
Appearance: smooth black exterior with canvas impression, smooth black interior.
Structure: heat-resistant synthetic rubber, synthetic textile reinforcements, synthetic cover resistant to heat, aging and atmospheric agents.
Compliant with ISO 1307/1992.
Operating temperature: -40°C +120°C.
Maximum working pressure 3 bar, Burst pressure 10 bar
Minimum supply packs/lots:
- 1 meter bars
- 40 meter rolls
- 61 meter rolls
Appearance: smooth black exterior with canvas impression, smooth black interior.
Structure: heat-resistant synthetic rubber, synthetic textile reinforcements, synthetic cover resistant to heat, aging and atmospheric agents.
Compliant with ISO 1307/1992.
Operating temperature: -40°C +120°C.
Maximum working pressure 3 bar, Burst pressure 10 bar
Minimum supply packs/lots:
- 1 meter bars
- 40 meter rolls
- 61 meter rolls
| Code | Internal diameter mm |
|---|---|
| 09GRAD013/019 T | 13x19 |
| 09GRAD016/022 T | 16x22 |
| 09GRAD018/024 T | 18x24 |
| 09GRAD020/026 T | 20x26 |
| 09GRAD022/028 T | 22x28 |
| 09GRAD025/032 T | 25x32 |
| 09GRAD028/036 T | 28x36 |
| 09GRAD030/038 T | 30x38 |
| 09GRAD032/040 T | 32x40 |
| 09GRAD035/043 T | 35x43 |
| 09GRAD038/047 T | 38x47 |
| 09GRAD040/049 T | 40x49 |
| 09GRAD042/051 T | 42x51 |
| 09GRAD045/054 T | 45x554 |
| 09GRAD050/060 T | 50x60 |
| 09GRAD055/065 T | 55x65 |
| 09GRAD060/070 T | 60x70 |
| 09GRAD065/076 T | 65x76 |
| 09GRAD070/081 T | 70x81 |
| 09GRAD080/092 T | 80x92 |
| 09GRAD090/102 T | 90x102 |
| 09GRAD102/113 T | 102x113 |
| 09GRAD110/123 T | 110x123 |
