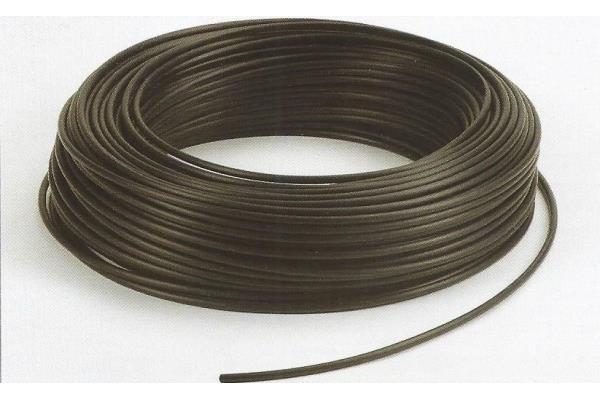

RILSAN HT PIPE High Temperature

Semi-rigid linear flexible RILSAN ^® HT pipe suitable for use in the presence of high temperatures.
Tube in thermoplastic Polyphthalamide (PPA) bio-polymer, obtained from renewable sources, semi-flexible and stabilized against light and heat. Suitable for high temperatures, resistant to aging and hydrolysis.

Fields of application: Industrial automation, Vacuum, Machine tools, Automotive, Steam, Chemical vapours.

OPERATING TEMPERATURE: -30°+130°C (peaks of 150°C for a few minutes)

safety factor 3:
Black colour.
Standard lengths 25-50-100m

Diameters mm	Weight g/m	Radius of curvature mm	Pressure of exercise Cafe
4x6	16.3	35	40
6x8	22.8	65	28
8x10	29.4	100	22
10x12	35.9	150	18
