SAE 100 R6 HOSE
ONLINE CATALOGUE › HOSES › Specific flexible hoses for engine test rooms
Download sheet in pdf format

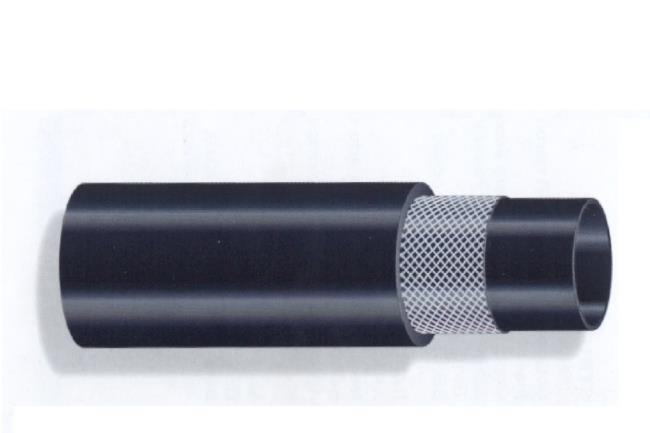

Smooth black NBR rubber underlayer, with textile reinforcement.
Smooth black NBR rubber cover resistant to hydrocarbons,
atmospheric agents, ozone.
Complies with SAE 100 R6 – EN 854 standard.

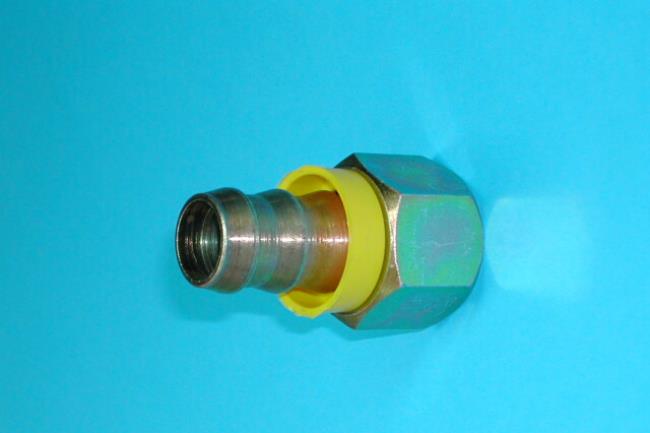

Can be used together with the relevant Push-Lock type fittings
oil mechanics with ogive seat, BSP thread.
Operating temperature: -40° +100°C
| code | Size mm | Operating pressure bar | Burst pressure bar | Curvature radius mm |
| 13GR6000003/16 | 4.8x11.1 | 35 | 140 | 50 |
| 13GR60000001/4 | 6.4x12.7 | 28 | 112 | 65 |
| 13GR60000005/16 | 7.9x14.3 | 28 | 112 | 80 |
| 13GR60000003/8 | 9.5x15.9 | 28 | 112 | 90 |
| 13GR60000001/2 | 12.7x19.8 | 28 | 112 | 100 |
| 13GR60000005/8 | 15.9x23 | 25 | 100 | 125 |
| 13GR60000003/4 | 18x27.5 | 21 | 84 | 140 |
| 13GR60000001 | 25.4x35 | 20 | 80 | 170 |
