CAVIGOM SHEATH - protection of electrical cables
ONLINE CATALOGUE › INSULATING SHEATH IN TECHNICAL FABRIC
Download sheet in pdf format

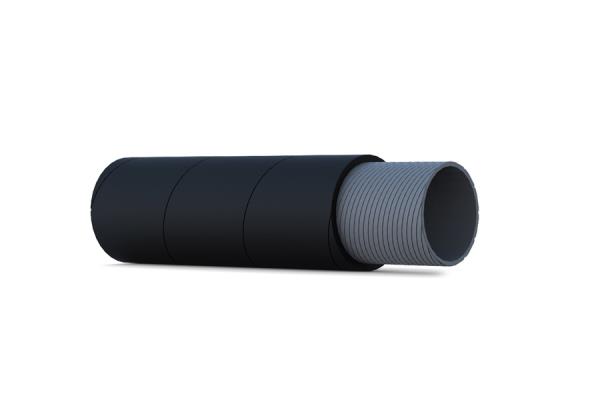

Protection and insulation sheath for electrical cables and welding torch power supply in anti-abrasive SBR rubber. Smooth black underlayer with reinforcing textile inserts, smooth black cover with canvas impression.
On demand:
- version for the protection of railway electrical cables according to the CEI 2037/ 2038 TRENITALIA 304188 ESP.03 standard
- insulating version greater than 5000 Volt/mm
- flameproof version
- fireproof version
MAXIMUM OPERATING TEMPERATURE: -30°C +80°C
PACKAGE IN ROLLS OF 20-40 METERS
Other dimensions on request
On demand:
- version for the protection of railway electrical cables according to the CEI 2037/ 2038 TRENITALIA 304188 ESP.03 standard
- insulating version greater than 5000 Volt/mm
- flameproof version
- fireproof version
MAXIMUM OPERATING TEMPERATURE: -30°C +80°C
PACKAGE IN ROLLS OF 20-40 METERS
Other dimensions on request
| Code | Dimension mm |
|---|---|
| 12GCAV015/020 T | 15x20 |
| 12GCAV016/019 T | 16x19 |
| 12GCAV019/022 T | 19x22 |
| 12GCAV022/025 T | 22x25 |
| 12GCAV025/028 T | 25x28 |
| 12GCAV028/031 T | 28x31 |
| 12GCAV030/033 T | 30x33 |
| 12GCAV032/035 T | 32x35 |
| 12GCAV035/038 T | 35x38 |
| 12GCAV038/041 T | 38x41 |
| 12GCAV040/043 T | 40x43 |
| 12GCAV042/045 T | 42x45 |
| 12GCAV045/048 T | 45x48 |
| 12GCAV051/054 T | 51x54 |
