Home /ONLINE CATALOGUE/PIPES AND FITTINGS FOR HYDROGEN AND FUEL CELLS/PIPES AND SLEEVES/VENA FUEL CELLS SLEEVES
PIPES AND SLEEVES

VENA FUEL CELLS SLEEVES

Download sheet in pdf format

Description and technical data

Fuel cell tube

VENAŽ FUEL CELL silicone sleeves are made of an elastomer composite specifically designed for use in fuel cells. This material was designed to meet key requirements in fuel cell applications and contribute to the overall efficiency of these systems.

APPLICATIONS

VenaŽ Fuel cells is the perfect solution for all fuel cell lines: hydrogen, oxygen, cooling / deionized water as it meets the main industry requirements:

  • High purity
  • Low permeability
  • High level of cleanliness
  • Non-conducting
  • Excellent chemical resistance

CUSTOMIZATION

Several layers of polyester fabric. Special marking. Custom color material

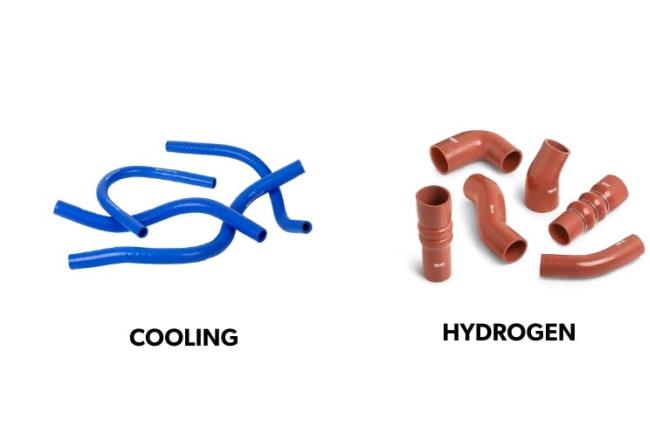

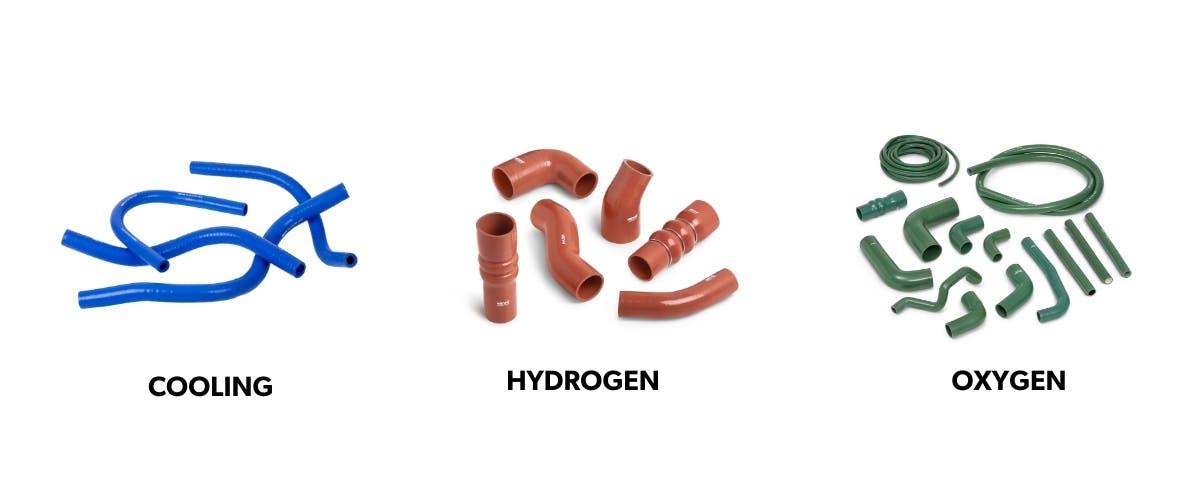

  • Red line-hydrogen

  • Green-Oxygen line

  • Blue line of cooling / deionized water

  • Shapes

  • Reducers, elbows and special shapes on request


    CHARACTERISTICS
    Outer layer Hybrid elastomer
    Inner layer Hybrid elastomer
    Temperature Heat stability up to 130ēC with peaks up to 150ēC
    Thermal Conductivity - Non-conductive
    Production length upon customers' request.
