LOK DOUBLE OGIVE FITTINGS

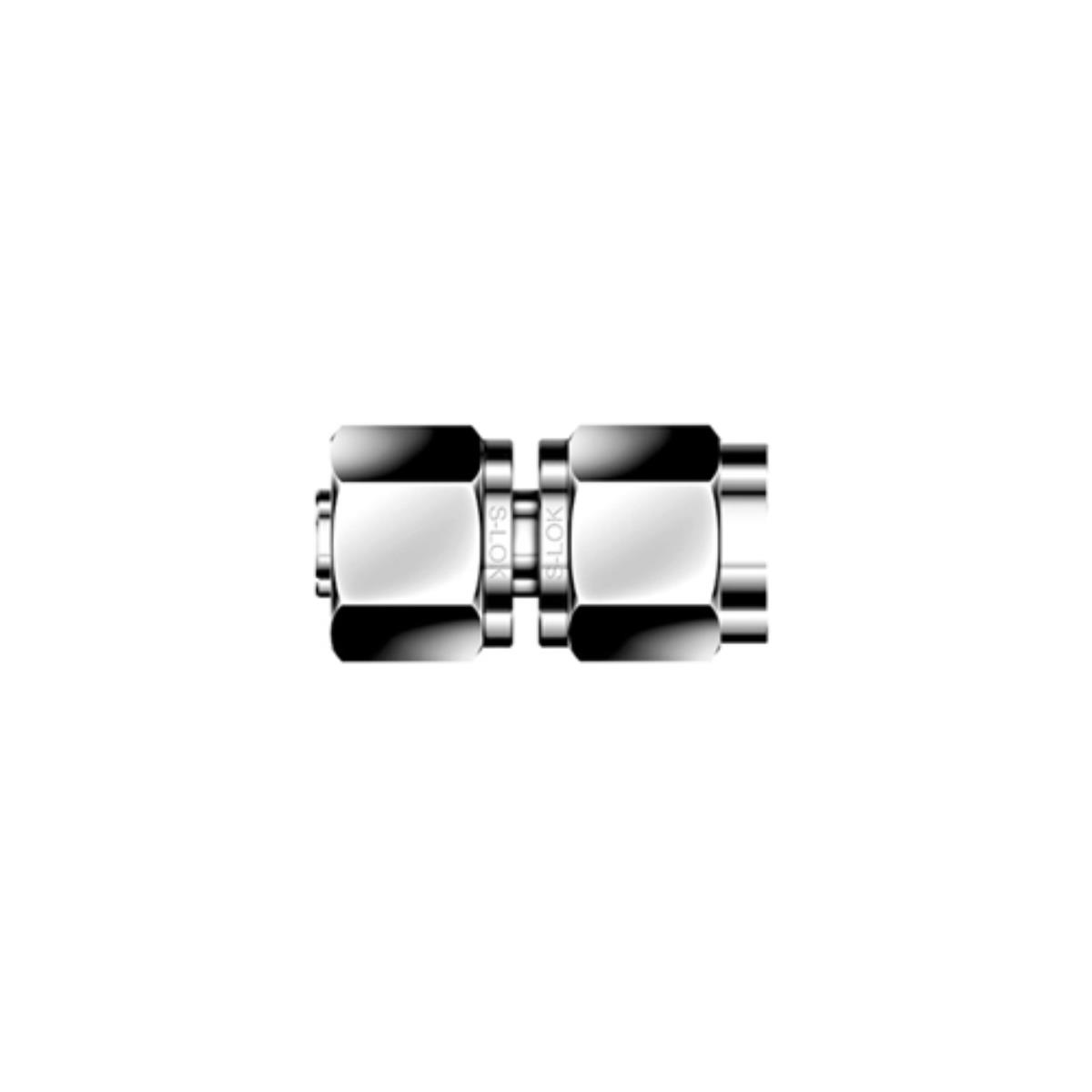

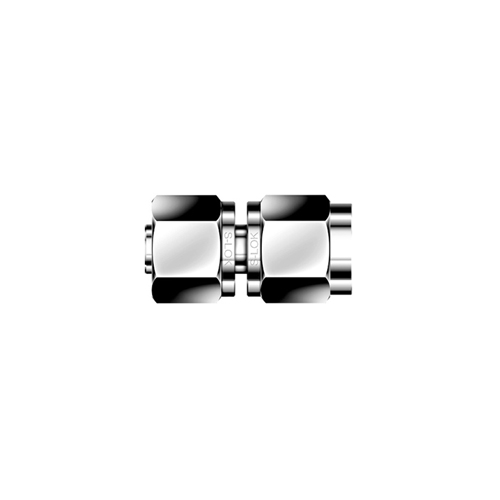

LOK SAA - Connector with AN female flare connection
Description and technical data
Connector with stainless steel female AN flared connection for the connection between inch LOK series fittings and 37° AN male-female flared butt fittings.
Minimum package 10 pieces.| CODE | OUTER TUBE DIAMETER | AN. FLARING DIAMETER |
| | inch | inch |
| SAA-2-2 | 1/8" | 1/8" |
| SAA-2-4 | 1/8" | 1/4" |
| SAA-4-4 | 1/4" | 1/4" |
| SAA-6-6 | 3/8" | 3/8" |
| SAA-8-8 | 1/2" | 1/2" |
