LOK DOUBLE OGIVE FITTINGS

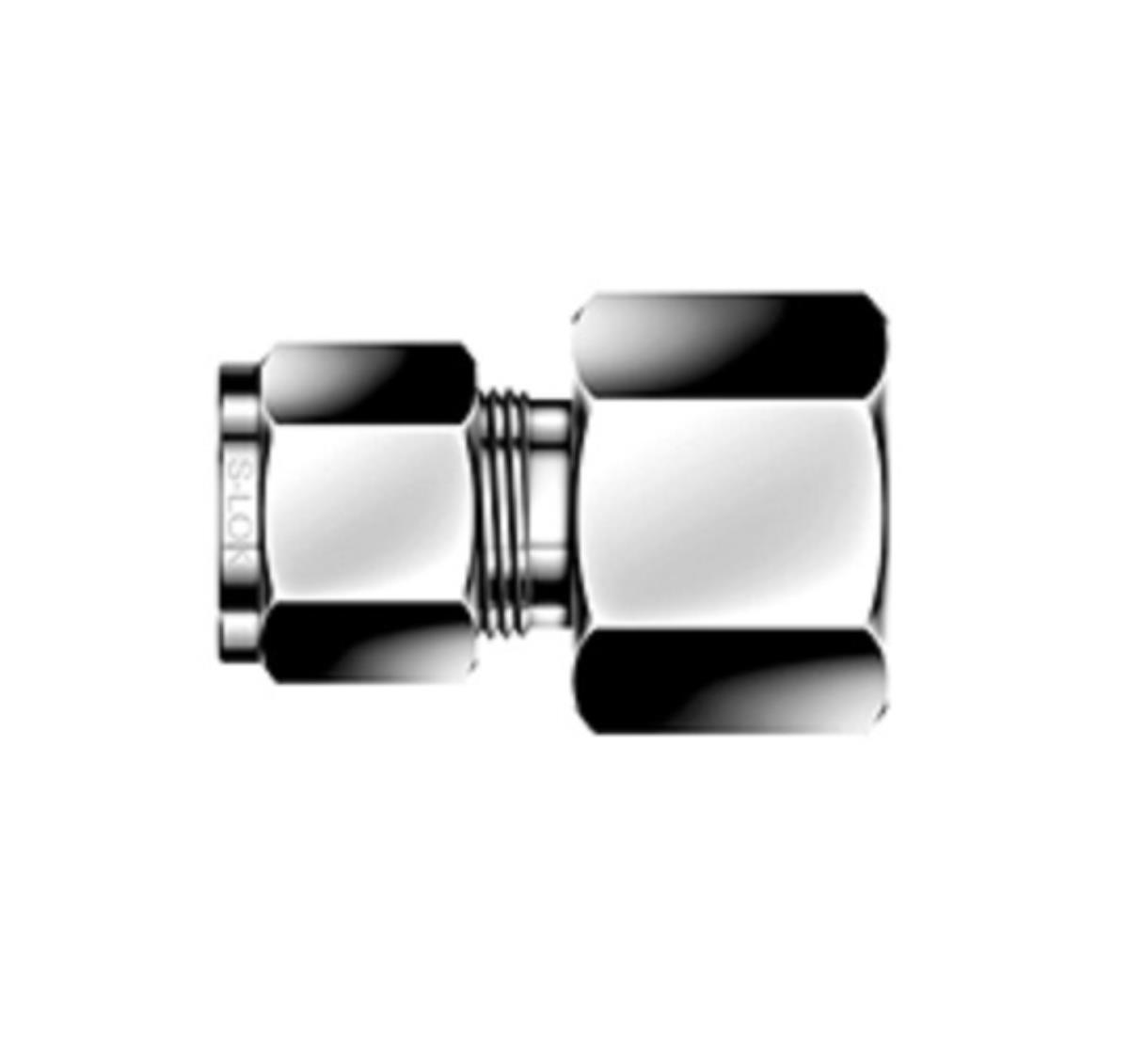

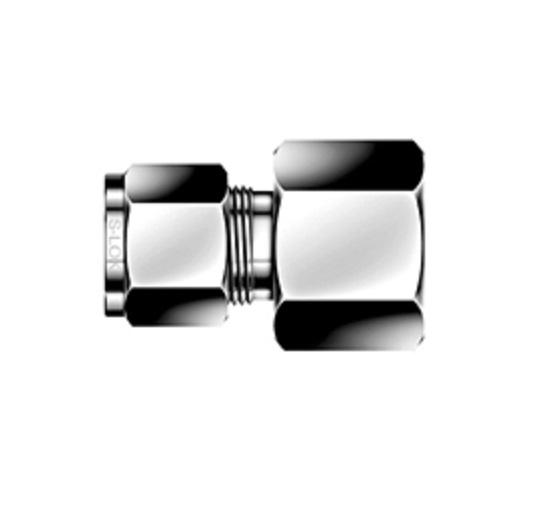

LOK SCG - threaded connector BSPP female - Inch pipe

LOK SCG - threaded connector BSPP female - Inch pipe
Download sheet in pdf format

Description and technical data

Imperial inch stainless steel pipe connection fitting with BSPP cylindrical female thread.
 Minimum package of 10 pieces.
Code
diameter
external
tube
fillet steak
inches
mm
BSPPT
SCG-4-2G
1/4
 6.35
1/8

SCG-4-4G
1/4
6.35
 1/4
SCG-4-6G
1/4
6.35
 3/8
SCG-4-8G
1/4
6.35
1/2

SCG-5-4G
5/16
7.93
1/4
SCG-5-8G
5/16
7.93
1/2
SCG-6-4G
3/8
9.52
1/4

SCG-6-6G
3/8
9.52
3/8
SCG-6-8G
3/8
9.52
1/2

SCG-8-4G
1/2
12.70
1/4

SCG-8-6G
1/2
12.70
3/8

SCG-8-8G
1/2
12.70
1/2
