LOK DOUBLE OGIVE FITTINGS

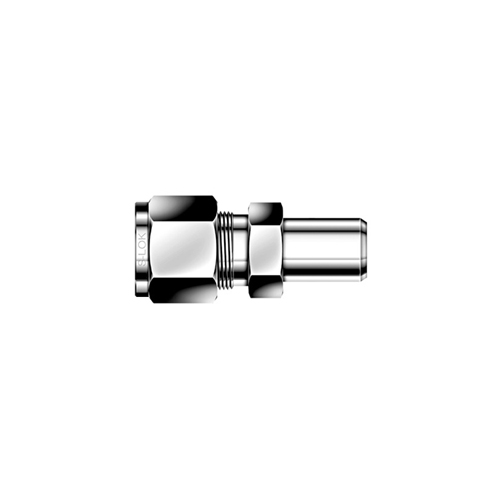

LOK SCW - Swivel male connector with SAE standard thread

LOK SCW - Swivel male connector with SAE standard thread
Download sheet in pdf format

Description and technical data

TABLE WITH IMPERIAL DIMENSIONS


Code

diameter
 external tube

shank
to weld

inches

mm

NPS

mm

SCW-2-2P

1/8"

3.17

1/8"

10.29

SCW-3-2P

3/16"

4.76

1/8"

10.29

SCW-4-2P

1/4"

6.35

1/8"

10.29

SCW-4-4P

1/4"

6.35

1/4"

13.72

SCW-5-2P

5/16"

7.93

1/8"

10.29

SCW-5-4P

5/16"

7.93

1/4"

13.72

SCW-6-4P

3/8"

9.52

1/4"

13.72

SCW-6-6P

3/8"

9.52

3/8"

5.15pm

SCW-6-8P

3/8"

9.52

1/2"

21.34

SCW-8-6P

1/2"

12.70

3/8"

5.15pm

SCW-8-8P

1/2"

12.70

1/2"

21.34

SCW-8-12P

1/2"

12.70

3/4"

26.67

SCW-10-8P

5/8"

15.87

1/2"

21.34

SCW-12-12P

3/4"

19.05

3/4"

26.67

SCW-16-16P

1"

25.40

1"

33.40

SCW-20-20P

1"-1/4

31.75

1"-1/4

42.16

SCW-24-24P

1"-1/2

38.10

1"-1/2

48.26

SCW-32-32P

2"

50.80

2"

60.33







TABLE WITH METRIC DIMENSIONS


Code

Diameter

external tube

shank
to weld

mm

NPS

mm

SCW-3M-2P

3

1/8"

10.29

SCW-4M-2P

4

1/8"

10.29

SCW-6M-2P

6

1/8"

10.29

SCW-6M-4P

6

1/4"

13.72

SCW-8M-2P

8

1/8"

10.29

SCW-8M-4P

8

1/4"

13.72

SCW-8M-8P

8

1/2"

21.34

SCW-10M-4P

10

1/4"

13.72

SCW-10M-6P

10

3/8"

5.15pm

SCW-10M-8P

10

1/2"

21.34

SCW-12M-4P

12

1/4"

13.72

SCW-12M-6P

12

3/8"

5.15pm

SCW-12M-8P

12

1/2"

21.34

SCW-14M-6P

14

3/8"

5.15pm

SCW-15M-8P

15

1/2"

21.34

SCW-16M-8P

16

1/2"

21.34

SCW-18M-8P

18

1/2"

21.34

SCW-32M-20P

32

1"-1/4

42.16

SCW-38M-24P

38

1"-1/2

60.33
