LOK DOUBLE OGIVE FITTINGS

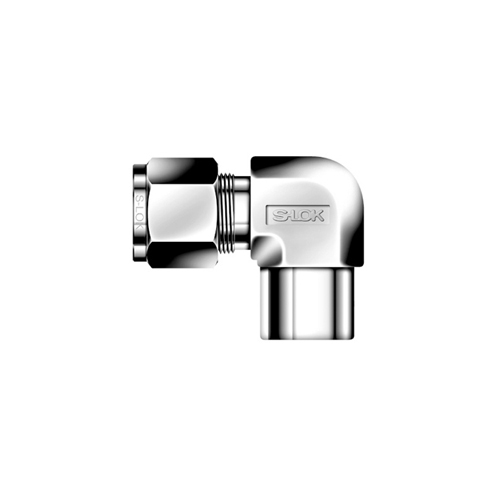

LOK SLF - NPT Female Elbow - Metric Pipe

LOK SLF - NPT Female Elbow - Metric Pipe
Download sheet in pdf format

Description and technical data

Connection fitting for metric stainless steel pipe with American NPT female thread. Minimum package 10 pieces.



Code
diameter
Tube
fillet steak
internal hole
fitting
mm
NPT
mm
SLF-6M-2N
6
1/8"
 4.8
SLF-6M-4N
 6
1/4"
 4.8
SLF-6M-6N
6
3/8"
7.11

SLF-6M-8N
6
1/2"
7.11
SLF-8M-2N
8
1/8"
7.11

SLF-8M-4N
8
1/4"
10.41

SLF-8M-8N
8
1/2"
10.41

SLF-10M-2N
10
1/8"
10.41

SLF-10M-4N
10
1/4"
9.65

SLF-10M-6N
10
3/8"
11.93

SLF-10M-8N
10
1/2"
11.93

SLF-12M-4N
12
1/4"
15.74

SLF-12M-6N
12
3/8"
15.74

SLF-12M-8N
12
1/2"
15.74

SLF-16M-8N
16
1/2"
10.35pm
