LOK DOUBLE OGIVE FITTINGS

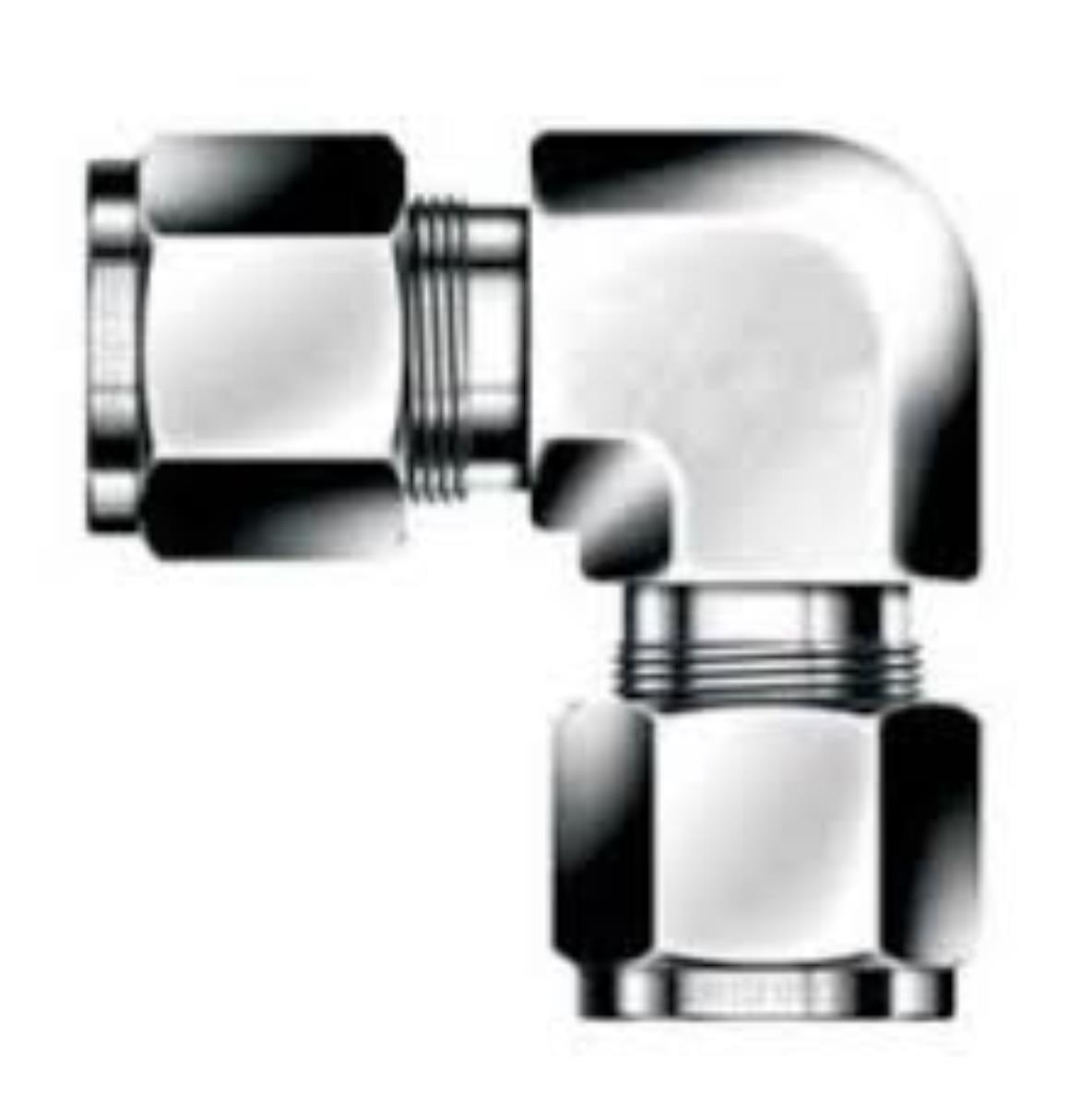

LOK SLW - Angled swivel male connector with SAE standard thread
Description and technical data
Male swivel angle fitting in AISI 316 stainless steel with double ogive for pipes with external diameter in inches, SAE [American Standard ] male thread whose acronym stands for Society Automotive Engineers, triangular profile with chamfered crest and bottom, the internal walls are angled at 60°.
| Code | external diameter
tube | fillet steak | internal hole
fitting |
inches | mm | SAE | mm
|
SLW-2-2P | 1/8" | 3.17 | 1/8" | 4.82 |
SLW-4-4P | 1/4" | 6.35 | 1/4" | 4.82 |
SLW-6-4P | 3/8" | 9.52 | 1/4" | 7.11 |
SLW-8-8P | 1/2" | 12.70 | 1/2" | 10.41 |
SLW-12-12P | 3/4" | 19.05 | 3/4" | 15.74 |
