LOK SMC-G BSPP male metric tube
ONLINE CATALOGUE › PIPES AND FITTINGS FOR HYDROGEN AND FUEL CELLS › STAINLESS STEEL SAFETY CONNECTIONS › LOK DOUBLE OGIVE FITTINGS
Download sheet in pdf format

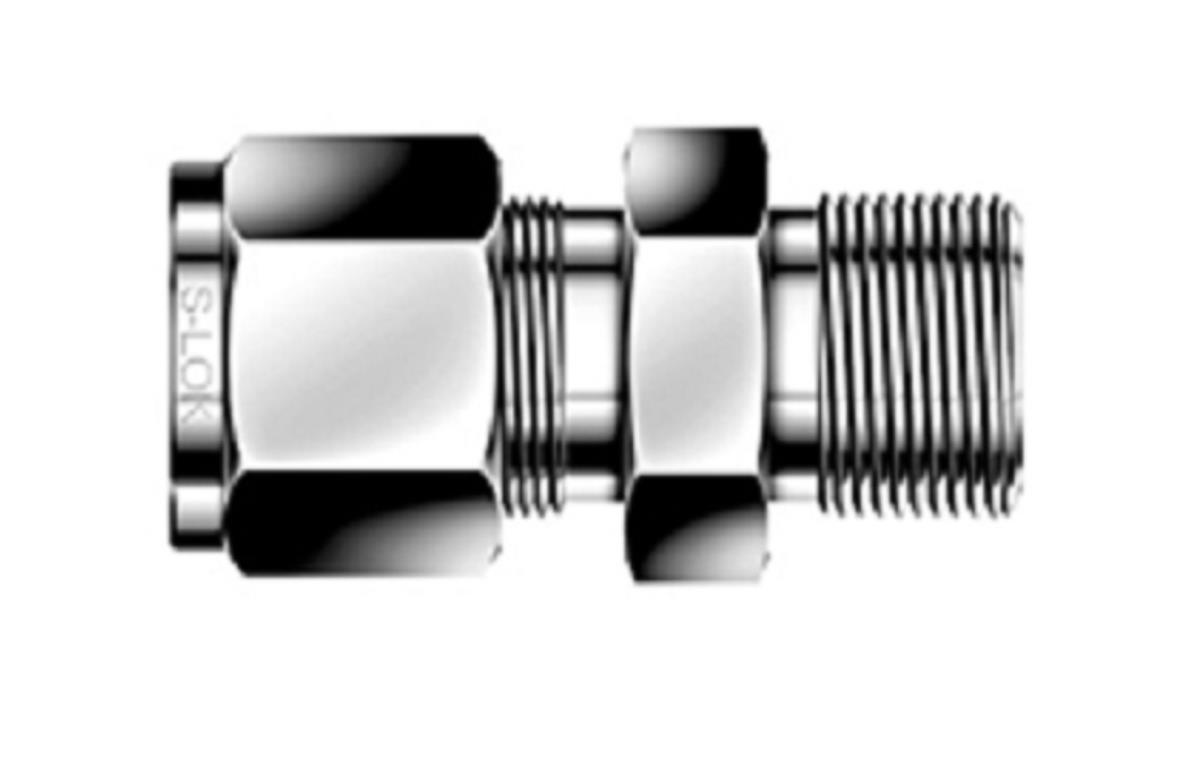

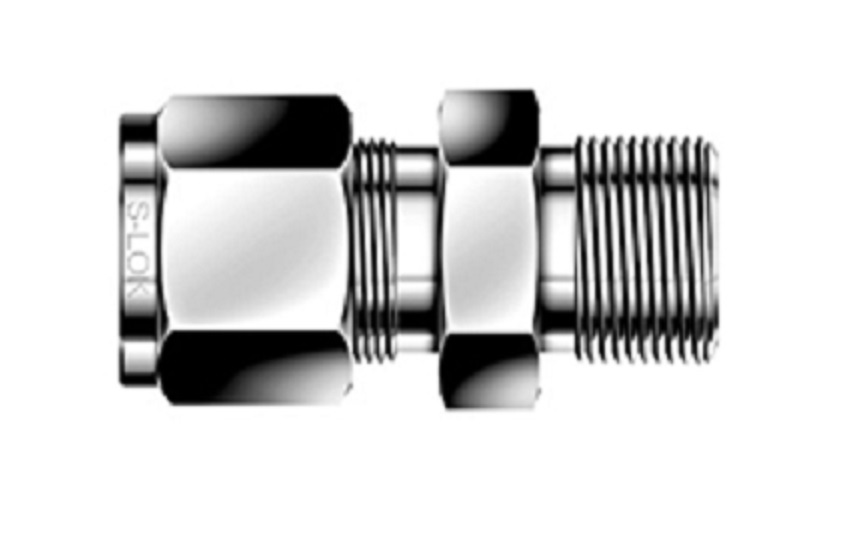

Straight end fitting for METRIC stainless steel pipe with BSPPT cylindrical inch thread.
Pack of 10 pieces.
UPON REQUEST, AVAILABLE IN A THERMOCOUPLE VERSION (SMCT), i.e. the S-Lok thermocouple connector HAS A THROUGH HOLE OF THE DIAMETER OF THE PIPE, the features allow the thermocouple to pass through the end of the fitting hole.
ASSEMBLY INSTRUCTIONS:
1 - Place the length of thermocouple passed through the wire end fitting and hold it to prevent movement during assembly.
2 - Turn the 1"1/4 nut after hand tightening with a wrench, holding the body with a backup wrench for size 1/4"(6mm) or larger.
Pack of 10 pieces.
UPON REQUEST, AVAILABLE IN A THERMOCOUPLE VERSION (SMCT), i.e. the S-Lok thermocouple connector HAS A THROUGH HOLE OF THE DIAMETER OF THE PIPE, the features allow the thermocouple to pass through the end of the fitting hole.
ASSEMBLY INSTRUCTIONS:
1 - Place the length of thermocouple passed through the wire end fitting and hold it to prevent movement during assembly.
2 - Turn the 1"1/4 nut after hand tightening with a wrench, holding the body with a backup wrench for size 1/4"(6mm) or larger.
| CODE | external tube diameter mm | BSPT inch cylindrical thread | internal hole of the fitting mm |
| SMC 2M-2G | 2 | 1/8 | 1.7 |
| SMC 3M-2G | 3 | 1/8 | 2.4 |
| SMC 4M-4G | 4 | 1/4 | 2.4 |
| SMC 6M-2G | 6 | 1/8 | 4.8 |
| SMC 6M-4G | 6 | 1/4 | 4.8 |
| SMC 6M-6G | 6 | 3/8 | 4.8 |
| SMC 6M-8G | 6 | 1/4 | 4.8 |
| SMC 8M-2G | 8 | 1/8 | 4.8 |
| SMC 8M-4G | 8 | 1/4 | 6.4 |
| SMC 8M-6G | 8 | 3/8 | 6.4 |
| SMC 8M-8G | 8 | 1/2 | 6.4 |
| SMC 10M-2G | 10 | 1/8 | 4.8 |
| SMC 10M-4G | 10 | 1/4 | 7.1 |
| SMC 10M-6G | 10 | 3/8 | 7.9 |
| SMC 10M-8G | 10 | 1/2 | 7.9 |
| SMC 12M-4G | 12 | 1/4 | 7.1 |
| SMC 12M-6G | 12 | 3/8 | 9.5 |
| SMC 12M-8G | 12 | 1/2 | 9.5 |
| SMC 12M-12G | 12 | 3/4 | 9.5 |
| SMC 15M-8G | 15 | 1/2 | 11.9 |
| SMC 16M-4G | 16 | 1/4 | 7.1 |
| SMC 16M-6G | 16 | 3/8 | 9.5 |
| SMC 16M-8G | 16 | 1/2 | 11.9 |
| SMC 16M-12G | 16 | 3/4 | 12.7 |
| SMC 18M-8G | 18 | 1/2 | 11.9 |
| SMC 18M-12G | 18 | 3/4 | 15.1 |
| SMC 20M-8G | 20 | 1/2 | 11.9 |
| SMC 20M-12G | 20 | 3/4 | 15.9 |
| SMC 22M-12G | 22 | 3/4 | 15.9 |
| SMC 22M-16G | 22 | 1 | 18.3 |
| SMC 25M-12G | 25 | 3/4 | 15.9 |
| SMC 25M-16G | 25 | 1 | 21.8 |
| SMC 28M-16G | 28 | 1 | 21.8 |
| SMC 28M-20G | 28 | 1-1/4 | 21.8 |
| SMC 32M-20G | 32 | 1-1/4 | 28.6 |
| SMC 38M-24G | 38 | 1-1/2 | 33.7 |
